Need help with directional movement system

Help and Feedback Scripting Support
, ,
#1
  1. What do you want to achieve?

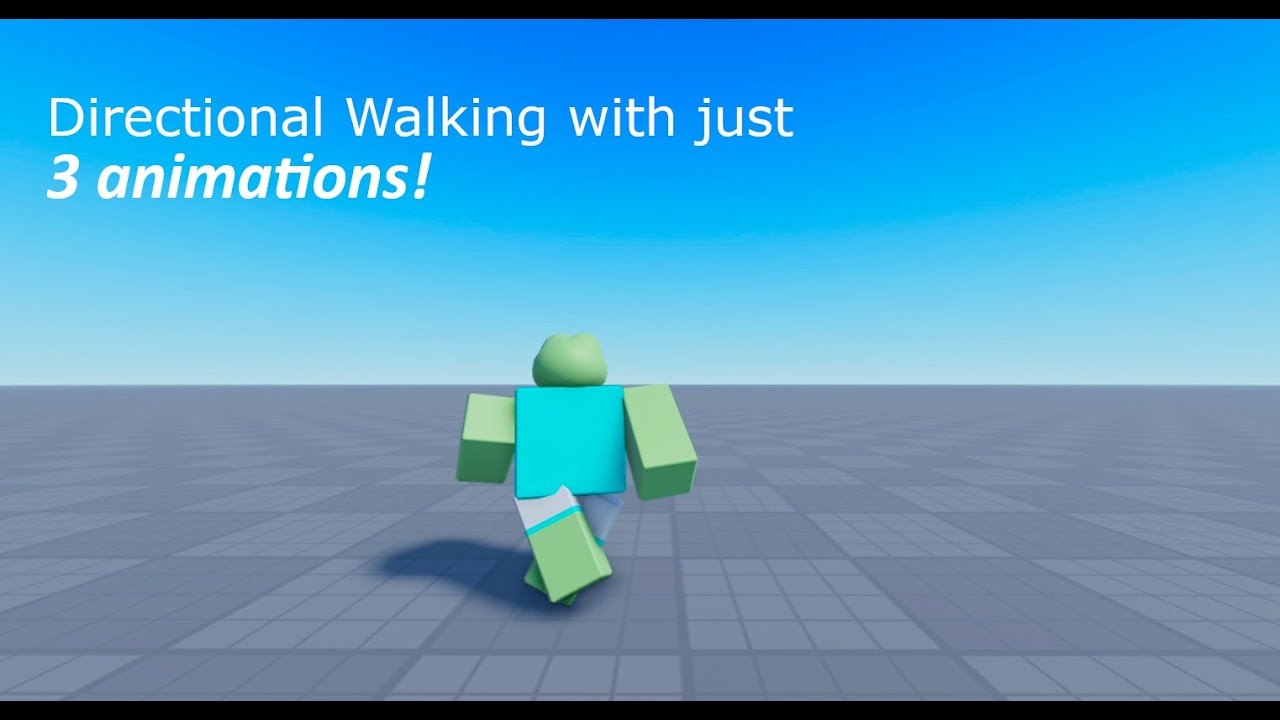

    I want to use this tutorial so that I can make directional walking.
  1. What is the issue?
    The issue is that, the animation doesn’t play correctly. Sometimes, the animations don’t play at all. I have another script that edits the Humanoid’s walkspeed, and I think that’s causing the problem.

robloxapp-20231105-1327575.wmv (1.0 MB)

  1. What solutions have you tried so far?
    I tried disabling the movement script, but it did not work. I made sure that the animations are on priority movement.
--Animate Script
local RunService					= game:GetService("RunService")

local Figure						= script.Parent
local MyHumanoid					= Figure:FindFirstChildWhichIsA("Humanoid")
local MyHRP							= Figure:WaitForChild("HumanoidRootPart") :: BasePart

MyHumanoid:SetStateEnabled(Enum.HumanoidStateType.Ragdoll, false)
MyHumanoid:SetStateEnabled(Enum.HumanoidStateType.FallingDown, false)

local function getAnim(ID: string)
	local animation = Instance.new("Animation")
	animation.AnimationId = "rbxassetid://".. ID

	return animation
end

local DirectionalMovement = {
	["WalkFoward"] = MyHumanoid:LoadAnimation(getAnim(15279882595)),
	["WalkRight"] = MyHumanoid:LoadAnimation(getAnim(15280017468)),
	["WalkLeft"] = MyHumanoid:LoadAnimation(getAnim(15280030551))
}

for _, Animation: AnimationTrack in pairs(DirectionalMovement) do
	Animation.Priority = Enum.AnimationPriority.Action4
	Animation:Play(0, 0.01, 0)
end

local Idle = MyHumanoid:LoadAnimation(getAnim(15017430611))
Idle:AdjustSpeed(0)
Idle:Play()

RunService.RenderStepped:Connect(function(dt)
	local MoveDirection = MyHRP.CFrame:VectorToObjectSpace(MyHRP.AssemblyLinearVelocity)
	local Forward = math.abs(math.clamp(MoveDirection.Z/MyHumanoid.WalkSpeed, -1, 0.01))
	local Backward = math.abs(math.clamp(MoveDirection.Z/MyHumanoid.WalkSpeed, 0.01, 1))
	local Right = math.abs(math.clamp(MoveDirection.X/MyHumanoid.WalkSpeed, 0.01, 1))
	local Left = math.abs(math.clamp(MoveDirection.X/MyHumanoid.WalkSpeed, -1, 0.01))

	local SpeedUnit = (MoveDirection.Magnitude/MyHumanoid.WalkSpeed)

	if MoveDirection.Z/MyHumanoid.WalkSpeed < 0.1 then
		DirectionalMovement.WalkFoward:AdjustWeight(Forward)
		DirectionalMovement.WalkRight:AdjustWeight(Right)
		DirectionalMovement.WalkLeft:AdjustSpeed(Left)

		for _, track: AnimationTrack in pairs(DirectionalMovement) do
			track:AdjustWeight(SpeedUnit)
		end
	else
		--Backwards

		DirectionalMovement.WalkFoward:AdjustWeight(Backward)
		DirectionalMovement.WalkRight:AdjustWeight(Left)
		DirectionalMovement.WalkLeft:AdjustSpeed(Right)

		for _, track: AnimationTrack in pairs(DirectionalMovement) do
			track:AdjustWeight(SpeedUnit*-1)
		end
	end
end)

--Movement Script
local ActionService											= game:GetService("ContextActionService")
local InputService											= game:GetService("UserInputService")
local RunService											= game:GetService("RunService")

local Player 												= game.Players.LocalPlayer
local camera												= workspace.CurrentCamera

local plrScripts											= Player.PlayerScripts :: PlayerScripts
local plrModule	: {}										= require(plrScripts:WaitForChild("PlayerModule"))
local Controls												= plrModule:GetControls() :: {}

local inputVel												= Vector3.new()
local wishDir												= Vector3.new()
local playerVel												= Vector3.new()

local wishJump												= false
local canJump												= true

local SIDE_STRAFE_SPEED										= 1
local SIDE_STRAFE_ACCEL										= 100
local MAX_SPEED												= 100 --320
local MOVE_SPEED											= 25
local MAX_ACCEL												= 10*MAX_SPEED
local AIR_FRICTION											= 3
local FRICTION 												= 8
local RUN_DEACCEL											= 5
local AIR_ACCEL												= 2.5
local JUMP_BUFFER											= .1

local HOLD_JUMP_TO_BHOP										= true

local K_CURVATURE = 2.0
local K_DEADZONE = 0.15

local humanoid: Humanoid									= nil
local hrp: BasePart											= nil

local function keyHandler(key: InputObject)
	if key.KeyCode == Enum.KeyCode.W then
		inputVel += Vector3.new(0, 0, -.9)
	end

	if key.KeyCode == Enum.KeyCode.A then
		inputVel += Vector3.new(-1, 0, 0)
	end

	if key.KeyCode == Enum.KeyCode.S then
		inputVel += Vector3.new(0, 0, .9)
	end

	if key.KeyCode == Enum.KeyCode.D then
		inputVel += Vector3.new(1, 0, 0)
	end
end

local function FCurve(X: number): number
	return (math.exp(K_CURVATURE * X) - 1) / (math.exp(K_CURVATURE) - 1)
end

local function FDeadzone(X: number): number
	return FCurve((X - K_DEADZONE) / (1 - K_DEADZONE))
end

local function ThumbstickCurve(X: number): number
	return math.sign(X) * math.clamp(FDeadzone(math.abs(X)), 0, 1)
end

local function accelerate(wishSpeed: number, accel: number)
	local currentSpeed = playerVel:Dot(wishDir)
	local addSpeed = wishSpeed - currentSpeed

	if addSpeed <= 0 then
		return
	end

	local accelSpeed = accel * RunService.Heartbeat:Wait() * wishSpeed
	accelSpeed = accelSpeed > addSpeed and addSpeed or accelSpeed

	local x = playerVel.X + accelSpeed * wishDir.X
	local z = playerVel.Z + accelSpeed * wishDir.Z
	playerVel = Vector3.new(x, 0, z)
end

local function applyFriction(dt: number)
	local inAir = humanoid.FloorMaterial == Enum.Material.Air

	local vec = Vector3.new(playerVel.X, 0, playerVel.Z)
	local speed = vec.Magnitude

	local newFriction = inAir and AIR_FRICTION or FRICTION

	local control = speed < RUN_DEACCEL and RUN_DEACCEL or speed
	local drop = control * newFriction * RunService.Heartbeat:Wait() * dt

	local newSpeed = speed - drop
	newSpeed = newSpeed < 0 and 0 or newSpeed
	newSpeed = speed>0 and newSpeed/speed or newSpeed

	local x = playerVel.X*newSpeed
	local z = playerVel.Z*newSpeed
	playerVel = Vector3.new(x, 0, z)
end

local function ground_vel(relativeToCamera: boolean)
	if not wishJump and canJump then
		applyFriction(1)
	else
		applyFriction(0)
	end

	local _WishDir = relativeToCamera and Vector3.new(wishDir.X, 0, wishDir.Z) or inputVel
	local wishSpeed = _WishDir.Magnitude*MOVE_SPEED

	accelerate(wishSpeed, RUN_DEACCEL)

	playerVel = Vector3.new(playerVel.X, 0, playerVel.Z)

	if humanoid and wishJump and canJump then
		humanoid.Jump = true
		wishJump = false
		canJump = false

		task.spawn(function()
			local Begin = tick()

			while tick() - Begin < JUMP_BUFFER do
				RunService.Heartbeat:Wait()
			end
			canJump = true
		end)
	end
end

local function air_vel(relativeToCamera: boolean)
	if inputVel.Z ~= 0 then
		applyFriction(1)
	end

	local _WishDirection = wishDir ~= Vector3.zero and wishDir.Unit or wishDir
	_WishDirection = relativeToCamera and Vector3.new(_WishDirection.X, 0, wishDir.Z) or inputVel

	local wishSpeed = _WishDirection.Magnitude*MOVE_SPEED

	local accel: number = AIR_ACCEL

	if inputVel.Z == 0 and inputVel.X ~= 0 then
		if wishSpeed > SIDE_STRAFE_SPEED then
			wishSpeed = SIDE_STRAFE_SPEED
		end; accel = SIDE_STRAFE_ACCEL
	end

	accelerate(wishSpeed, accel)
end

local function queueJump()
	if not humanoid then
		return
	end

	local IsJumping = if (Controls.activeController and Controls.activeController.enabled and Controls.humanoid)
		then (if (Controls.activeController:GetIsJumping() or (Controls.touchJumpController and Controls.touchJumpController:GetIsJumping()))
			then true
			else false)
		else false

	if not humanoid:GetStateEnabled(Enum.HumanoidStateType.Jumping) and IsJumping then
		IsJumping = false
	end

	if HOLD_JUMP_TO_BHOP then
		wishJump = IsJumping
	else
		if IsJumping and not wishJump then
			wishJump = true

			if Controls.activeController then
				Controls.activeController.isJumping = false
			elseif Controls.touchJumpController then
				Controls.touchJumpController.isJumping = false
			end
		end

		if not IsJumping then
			wishJump = false
		end
	end
	--wishJump = true
end

local function characterAdded(char: Model)
	humanoid = char:WaitForChild("Humanoid")
	hrp = char:WaitForChild("HumanoidRootPart")
end

local function onStep(dt: number)
	local cameraCframe = camera.CFrame
	wishDir = cameraCframe:VectorToWorldSpace(inputVel)
	wishDir = Vector3.new(wishDir.X, 0, wishDir.Z)

	accelerate(wishDir.Magnitude*MOVE_SPEED, RUN_DEACCEL)
	playerVel = Vector3.new(playerVel.X, 0, playerVel.Z)
end

Controls.moveFunction = function(controller: Player, walkDirection: Vector3, RelativeToCamera: boolean)
	RelativeToCamera = Controls.activeController and Controls.activeController:IsMoveVectorCameraRelative() or RelativeToCamera

	if controller == Player then
		local MoveVector: Vector3 = Controls:GetMoveVector()
		MoveVector = Vector3.new(
			ThumbstickCurve(MoveVector.X),
			ThumbstickCurve(MoveVector.Y),
			ThumbstickCurve(MoveVector.Z)
		)
		inputVel = MoveVector

		if humanoid then
			local grounded = humanoid.FloorMaterial ~= Enum.Material.Air

			if grounded then
				ground_vel(RelativeToCamera)
			else
				air_vel(RelativeToCamera)
			end

			local newDir = playerVel ~= Vector3.zero and playerVel.Unit or Vector3.zero

			local newSpeed = playerVel.Magnitude
			newSpeed = math.clamp(newSpeed, 0, MAX_SPEED)

			humanoid.WalkSpeed = newSpeed
			humanoid:Move(newDir, false)
		end
	end
end

Player.CharacterAdded:Connect(characterAdded)
RunService.RenderStepped:Connect(onStep)
InputService.JumpRequest:Connect(queueJump)
1 Like
