Parenting objects to UIGridLayouts causing extreme lag all of a sudden

Bug Reports Engine Bugs
,
#1

Recently, after having changed nothing in our game, UIGridLayouts are causing lag/complete freezing when parenting a large amount of ImageButtons to a frame that has a UIGridLayout under it. This does not occur when using UIListLayouts.
Players started reporting this 1-2 weeks ago, and we have not updated anything in our game to have caused this. It is consistent everywhere that we use UIGridLayouts.

To demonstrate this with a slightly extreme example, modifying and parenting 2621 ImageButtons to a frame that has a UIListLayout under it will complete in roughly 0.3 seconds. Trying to do the same under the same frame, this time with a UIGridLayout, will take too long in studio and will result in a Script Timeout error.

Code of the for loop that is responsible for the parenting

for i = 1, #PN.FirstNames do -- or for i = 1, 2621 do
	local cn = PN.FirstNames[i]
	local nn = script.NameOption:Clone()
	nn.Name = cn
	nn.Title.Text = cn
	if cn == ChosenFName then
		nn.BackgroundColor3 = Color3.new(0.5, 0.5, 0.5)
	end
	nn.Visible = true
	nn.MouseButton1Click:Connect(function()
		if Fade.Visible == true then return end
		UI.Click()
		ChosenFName = cn
		Frame.Info.Selection.Text = "Chosen Name - "..cn.." "..ChosenLName
		local Search = FFrame.List.Frame:GetChildren()
		for o = 1, #Search do
			if Search[o].ClassName == "ImageButton" then
				if Search[o] == nn then
					Search[o].BackgroundColor3 = Color3.new(0.5, 0.5, 0.5)
				else Search[o].BackgroundColor3 = Color3.new(0, 0, 0) end
			end
		end
	end)
	nn.Parent = FFrame.List.Frame
end

Hierarchies of used objects:

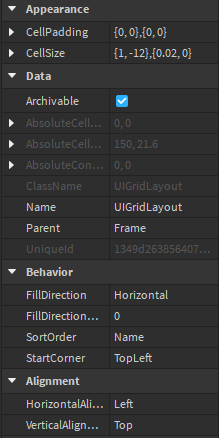

Properties of the UIGridLayout and UIListLayout used:

CellSize is meant to be edited in the script after parenting everything, though the script always times out before being able to do that.

Further properties of any objects, a video demonstration of the freezing, or any other relevant information, can be provided if needed.
Device specifications can be provided if needed, though this has been reported by a large majority of our playerbase.
For reference, this is occuring in Arcane Odyssey

48 Likes
#2

We need this addressed ASAP, players opening their inventories in our game sometimes freeze for 3+ minutes or even crash since this change

30 Likes
#3

does this happen if the sortorder is changed from name to layoutorder? i could reproduce the bug if the sortorder on the layout (happens to both gridlayouts and listlayouts) was “Name” utilizing this code, but it does not happen if i switch it to ‘LayoutOrder’

	for i = 1, 5000 do
		local button = script.TextButton:Clone()
		button.Name = tostring(math.random(1, 2321))

		button.Activated:Connect(function()
			print('awesome')
		end)

		button.Parent = script.Parent -- scrollingframe
	end


rbxl file
uilayoutthing.rbxl (64.3 KB)

4 Likes
#4

Hi moochezz, we’ve rolled back a suspect flag for this issue. Could you confirm if the extreme lag still occurs?

9 Likes
#5

Appears to be fixed now, thank you!

9 Likes
