PixelForge turns Roblox models into polished, transparent game icons, from the first capture to an entire organized icon set, without leaving Studio.
Frame the model directly in the viewport. Refine the result with a persistent live preview. Capture at true HD or 4K resolution. Batch whole folders. Build reusable Capture Workflows. Save locally, upload to Roblox, and keep every finished asset organized.
A few icons made with PixelForge
Every icon above was captured from a real Roblox Studio model. PixelForge works across pets, weapons, vehicles, characters, props, and anything else you can build in Studio.

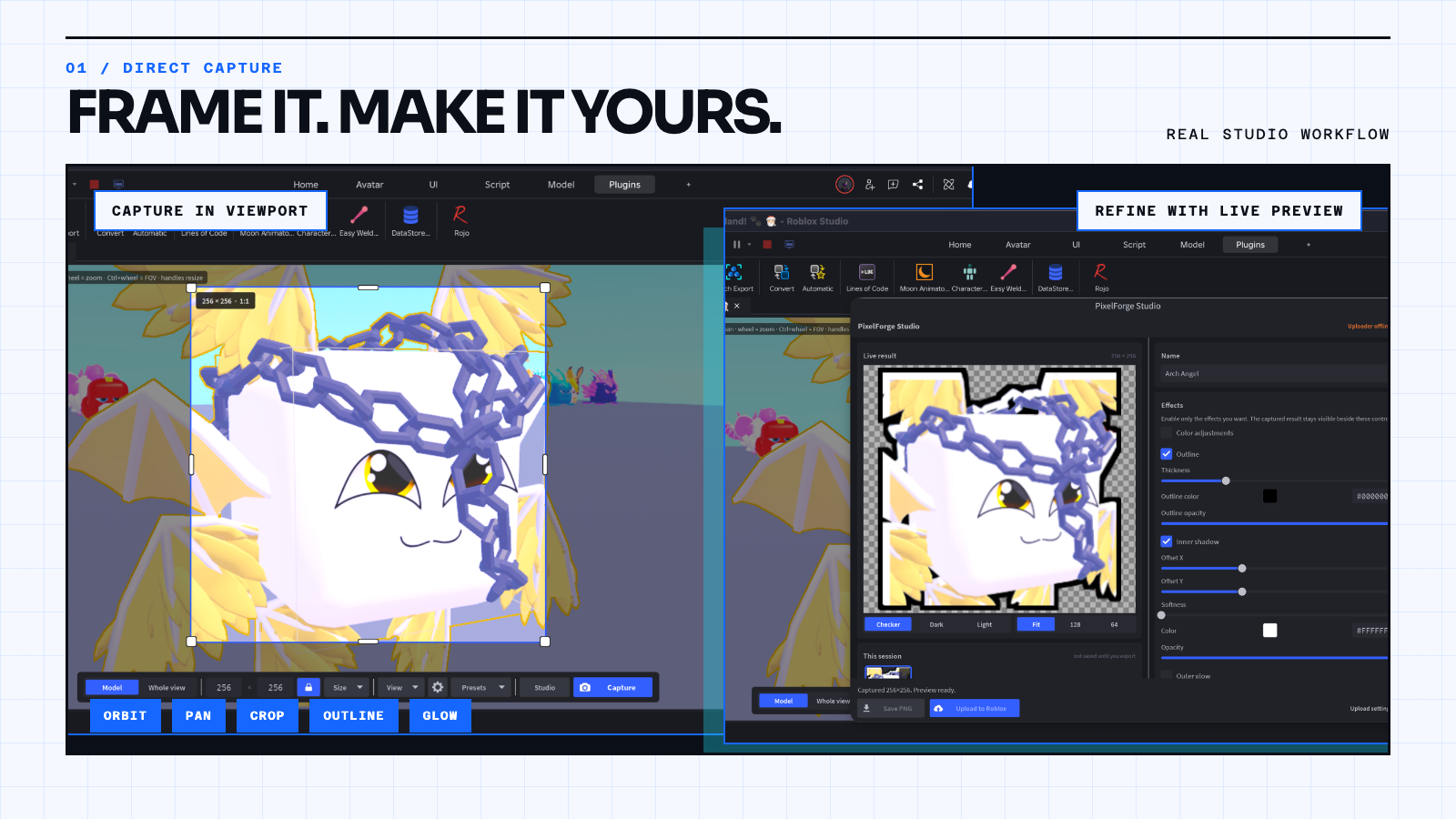

Capture and refine directly in Studio
- Frame any Model, Part, or MeshPart with viewport orbit, pan, zoom, crop, FOV, roll, auto-fit, reusable camera presets, and output sizes from 16 to 4096 px.
- Capture a real per-pixel alpha cutout instead of removing a single background color. A graded clean plate keeps anti-aliased edges clean on hair, glass, particles, glow, and other difficult subjects.
- Keep the captured result visible while adjusting color, contrast, outline, shadow, and glow. Compare multiple shots in the same session before choosing the keeper.
- Capture the whole Studio view when you need an environment, build, diorama, or complete scene instead of one isolated model.

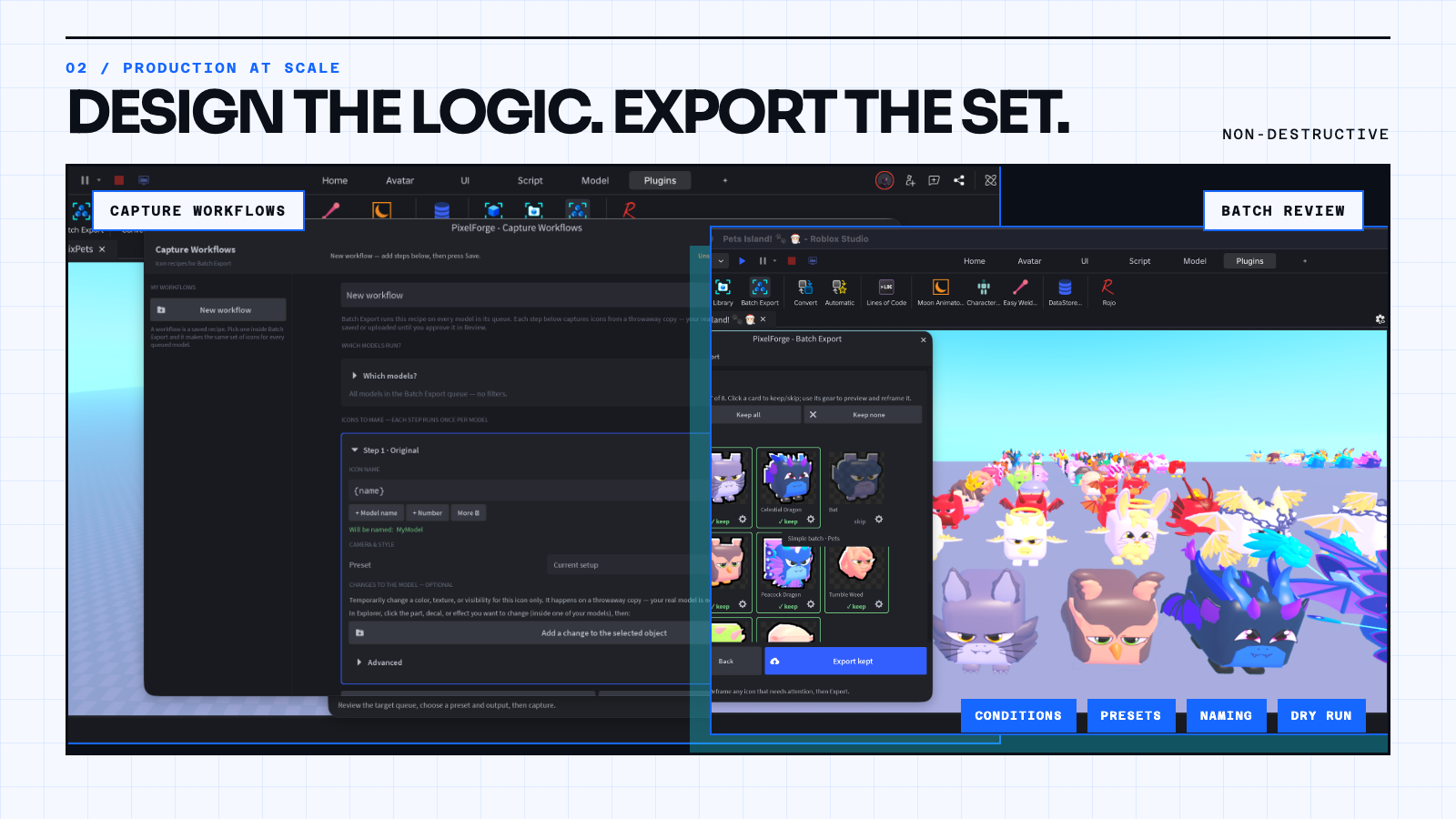

Batch Export and Capture Workflows
Batch Export turns a folder or selection into a reviewable icon set. PixelForge captures the queue, lets you keep, skip, preview, or reframe individual results, and exports only the approved icons.
Capture Workflows turn repeated art direction into reusable recipes:
- Generate multiple named variants for every model in a batch.
- Apply different presets, framing, and temporary property changes per step.
- Add conditions so steps only run on the models they are intended for.
- Preview the plan with a dry run before anything is saved or uploaded.
- Work on throwaway copies, so the source models in your place are never modified.
This is useful for inventories, pet collections, weapon tiers, vehicle catalogs, character portraits, shop icons, event variants, and any project that needs a consistent visual system rather than one isolated screenshot.

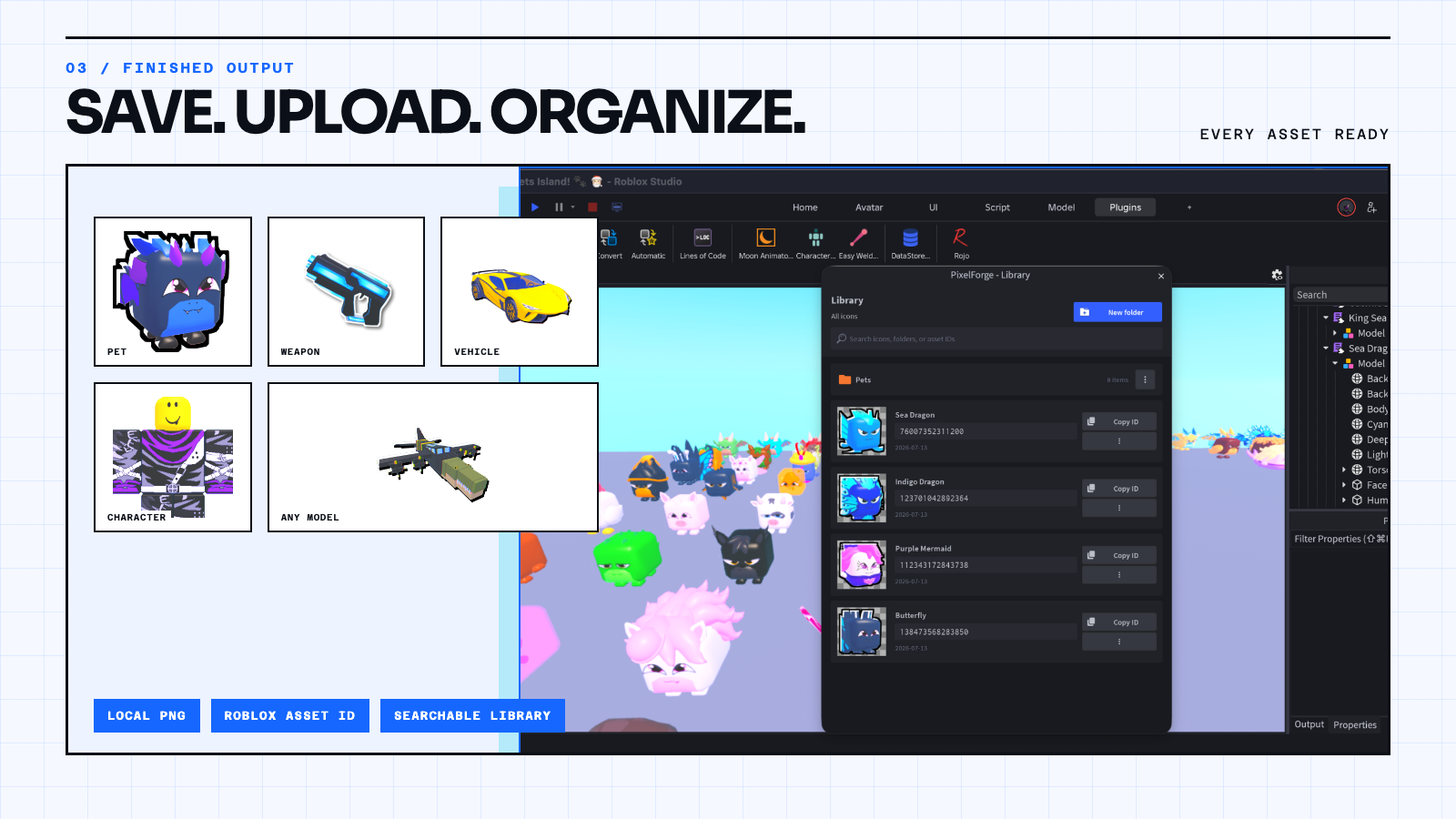

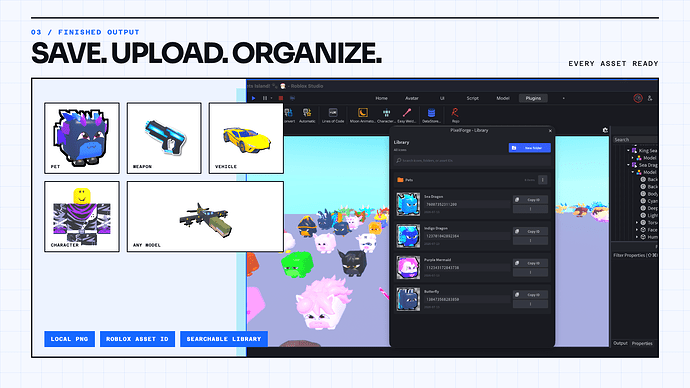

Save, upload, and organize
- Save transparent PNGs directly to your computer.
- Upload finished icons to your Roblox account or group from the same review flow.
- Copy asset IDs without leaving Studio.
- Organize uploaded icons into folders and search by icon name, folder, or asset ID.
- Save presets so every icon in the project shares the same framing and finish.
How the transparency works
Why the edges stay clean
Single-color background removal often leaves a colored fringe around anti-aliased pixels. PixelForge captures the subject against two controlled backdrops and solves for the transparency of every pixel.
The sky, sun, and moon are removed during a transparent capture so the background cannot leak into the result. Edge pixels resolve toward the model’s real color instead of white or the backdrop color, keeping the icon clean when Roblox displays it at small sizes.
Requirements
- Roblox Studio on Windows or macOS.
- A Model, Part, MeshPart, or Studio view to capture.
- Saving PNGs or uploading to Roblox uses the included PixelForge Uploader, a small local companion that is configured once.
- Roblox uploads require a free Open Cloud API key. The key stays outside Studio.
PixelForge 2.1 highlights
v2.1 release notes
- True-resolution capture for custom outputs up to 4096 px per side, with built-in HD and 4K presets.
- PixelForge automatically borrows Studio’s exact-resolution desktop emulation only when a larger crop needs more source pixels, then restores your prior simulator setup.
- The viewport action bar now scales gracefully across small, large, and high-density Studio windows.
- Cleaner transparent edges: a graded clean plate removes blue or tinted border artifacts while retaining the Atmosphere, Bloom, depth of field, blur, SunRays, color grading, exposure, and lighting you see in Studio.
Get PixelForge
If you try PixelForge, I would love to see the icon sets you build with it. Feedback, bug reports, and workflow requests are all welcome in this thread.

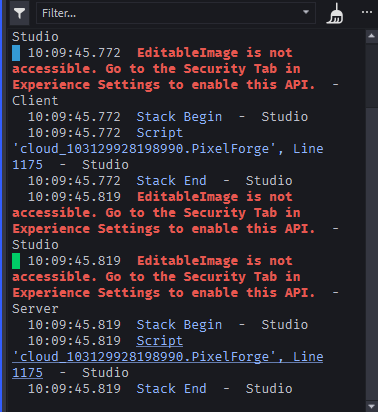

seeking for feedback! any issues contact me
