R6 Point To Mouse.Hit Needed (But with working anims)

Help and Feedback Scripting Support
, , ,
#1

Hello! I’m trying to make the R6 arm face the mouse.Hit for my game, which is in third person camera lock.

Since I’m not really that good at angles, I looked around for some code that I could modify for my needs. I found this code:

local Players = game:GetService("Players")
local RunService = game:GetService("RunService")

local player = Players.LocalPlayer
local char = player.Character
local mouse = player:GetMouse()

--Weld for the cframing plus motor6ds are out of my league and animations will still work like nothing happen to it

local armWeld = Instance.new("Weld")
armWeld.Part0 = char.Torso
armWeld.Part1 = char:WaitForChild("Right Arm")
armWeld.Parent = char

--pi/2 is also known as 90 deg.(just wanted to point this out lol)

local piDiv2 = math.pi/2

RunService.Heartbeat:Connect(function()
	local CFraming = CFrame.new((char.Torso.CFrame * CFrame.new(1.5, 0.5, 0)).Position, mouse.Hit.Position) * CFrame.new(0, 0, -0.5) * CFrame.Angles(piDiv2, 0, 0)
	armWeld.C0 = char.Torso.CFrame:ToObjectSpace(CFraming)
end)

The main problem I have with this code is that I can’t animate with it since its a weld. I instead tried modifying it to instead change the C0 of the motor6d and using an animation to keep the arm still.

local rightShoulder = char.Torso:WaitForChild("Right Shoulder")
local defaultC0 = rightShoulder.C0

local piDiv2 = math.pi / 2
local lerpSpeed = 0.3

RunService.Heartbeat:Connect(function()

    if canPointToMouse == true then
        local targetCFrame = CFrame.new(char.Torso.Position, mouse.Hit.Position) * CFrame.new(1.5, 0.5, 0) * CFrame.Angles(piDiv2, 0, 0)

        local targetC0 = char.Torso.CFrame:ToObjectSpace(targetCFrame)

        rightShoulder.C0 = rightShoulder.C0:Lerp(targetC0, lerpSpeed)
    else
        rightShoulder.C0 = rightShoulder.C0:Lerp(defaultC0, lerpSpeed)
    end
end)

But since I’m still terrible at angles, I instead got this

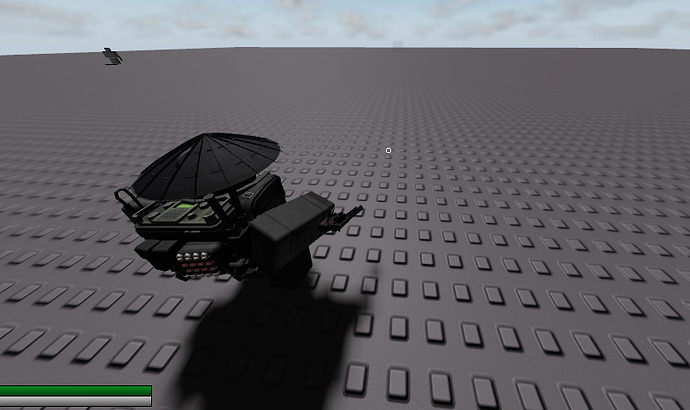

image808×481 70.8 KB

Sorry if whatever I said doesn’t make any practical sense. This is my first post and my first roblox project :pensive:

#2

You will want to multiply the original C0 with the rotation of the new one to preserve the proper rotation.

Try rightShoulder.C0 = rightShoulder.C0:Lerp(defaultC0 * targetC0.Rotation, lerpSpeed) instead.

#3

This doesn’t work either, unfortunately.


I disabled the animate to see if this was because of the code or if it was because of the idle animation, but it still didn’t work.

I think the reason its not working is because of the math in the code, and as I said before, I suck at angles. :confused:

local targetCFrame = CFrame.new(char.Torso.Position, mouse.Hit.Position) * CFrame.new(1.5, 0.5, 0) * CFrame.Angles(piDiv2, 0, 0)

local targetC0 = char.Torso.CFrame:ToObjectSpace(targetCFrame)
#4

Try changing CFrame.Angles(piDiv2, 0, 0) to CFrame.Angles(0, math.rad(90), 0)

#5


This is alot closer to what i wanted but it still doesn’t work :sob:

EDIT:

I forgot to turn off animate and also retain the proper rotation like you said earlier, but it still doesn’t work:

Thanks for helping, though!

#6

I’m guessing you have an idle animation for the tool that makes the arm look in a different direction than the default tool idle.

Try this instead: CFrame.Angles(math.rad(90), math.rad(90), 0)

If this doesn’t work, continue tweaking the CFrame.Angles in 90 degree increments until you reach your desired result.

Also, you don’t need to multiply it with the original C0 like I originally stated in this use case. Go back to what you were using in the first video and just modify the CFrame.Angles.

1 Like
#7

Thanks alot! I also realized that I forgot to add an offset to the CFrame of the torso when I changed it back, so it wasn’t my idle animation. Here’s my final code:

local rightShoulder = char.Torso:WaitForChild("Right Shoulder")
local defaultC0 = rightShoulder.C0

local lerpSpeed = 0.3

RunService.Heartbeat:Connect(function()

    if pointToMouse == true then
		local targetCFrame = CFrame.new(char.Torso.CFrame * CFrame.new(1, 0.5, 0).Position, mouse.Hit.Position) * CFrame.new(0, 0, -0.5) * CFrame.Angles(math.rad(90), math.rad(90), 0)

        local targetC0 = char.Torso.CFrame:ToObjectSpace(targetCFrame)

		rightShoulder.C0 = rightShoulder.C0:Lerp(targetC0, lerpSpeed)
    else
        rightShoulder.C0 = rightShoulder.C0:Lerp(defaultC0, lerpSpeed)
    end
end)
#8
