"Recognizing" groups of parts

[zddeisRBLX (zddeis)]

I have a model full of parts and i want to separate the parts into a “collection”, i want every part of its group to have the same number as its name, or group them all together (however you wanna help me)

i have this script i wrote here already but im no really sure what to do next?

local Model = workspace.Model
local ModelChildrens = Model:GetChildren()

local function GetDistance(FirstPart, SecondPart, Positive)
	local Offset = FirstPart.Size.X/2 + SecondPart.Size.X/2
	local Position = FirstPart.CFrame:ToWorldSpace(CFrame.new(Positive and Offset or -Offset,0,0)).Position
	local Distance = (Position - SecondPart.Position).Magnitude

	return Distance
end

for FirstIndex, FirstPart in pairs(ModelChildrens) do

	for SecondIndex, SecondPart in pairs(ModelChildrens) do -- Negative Offset
		if FirstPart == SecondPart then continue end
		if GetDistance(FirstPart, SecondPart, false) < 0.1 then else continue end

	end

	for SecondIndex, SecondPart in pairs(ModelChildrens) do -- Positive Offset
		if FirstPart == SecondPart then continue end
		if GetDistance(FirstPart, SecondPart, true) < 0.1 then else continue end

	end
end

[builderinbusiness (cookithefirst)]

with what i understood, you want every part in a group have the same name? elaborate please

[zddeisRBLX (zddeis)]

[builderinbusiness (cookithefirst)]

okayy, so you want every part in the model to be seperated in terms of position?

[zddeisRBLX (zddeis)]

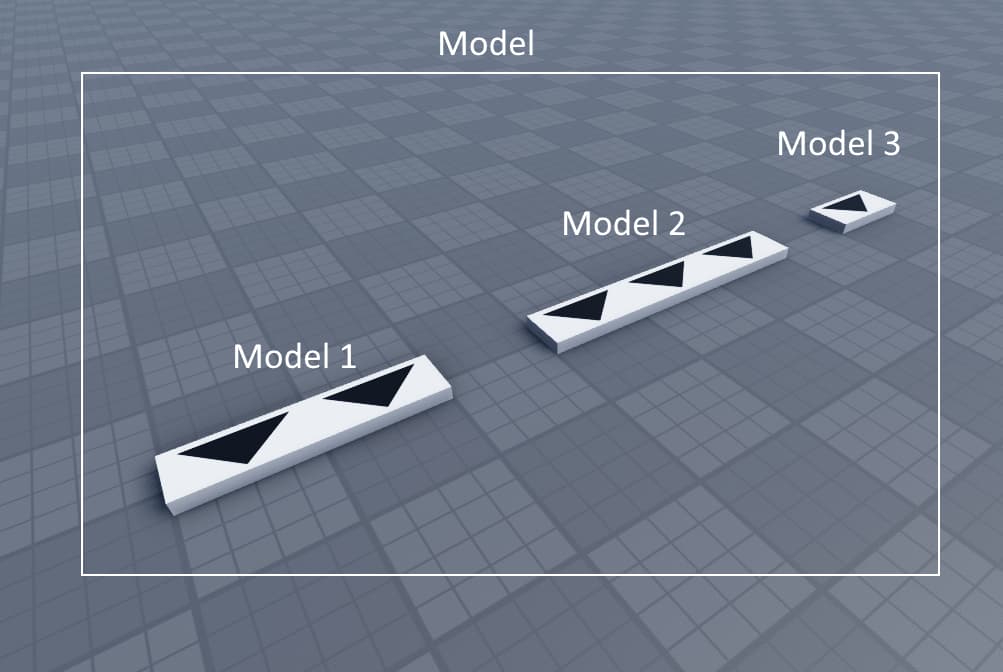

exactly just as shown in the picture, i did a function that returns the ideal position for the next part

[zddeisRBLX (zddeis)]

this is what the function does

returns the right one if the 3rd value passed to the function is false and the left if it is true

[builderinbusiness (cookithefirst)]

well if the parts are that close, maybe set a small radius to detect? let me see what i can do

[builderinbusiness (cookithefirst)]

after a bit of fiddling, i finally found the way to do it.

group = 0
for i,v in pairs(script.Parent.Model:GetChildren()) do
	v.Size += Vector3.new(0.1, 0, 0.1)
	allowed = true
	group = group + 1
	a = Instance.new("Model")
	a.Name = group
	a.Parent = script.Parent.Model
	v.Parent = a
	currentgroup = a
	for ii,vv in pairs(v:GetTouchingParts()) do
		if vv ~= v then
			if tonumber(vv.Parent.Name) then
				currentgroup = vv.Parent
				break
			else
				vv.Parent = a
			end
		end
	end
	if currentgroup ~= a then
		for i,vvv in pairs(a:GetChildren()) do
			vvv.Parent = currentgroup
		end
		a:Destroy()
		group = group - 1
	end
	v.Size -= Vector3.new(0.1, 0, 0.1)
end

put this script in workspace, and name the model with the parts inside “Model” and this should sort it out for you

edit: not the most efficient code but atleast it works.

[builderinbusiness (cookithefirst)]

before:

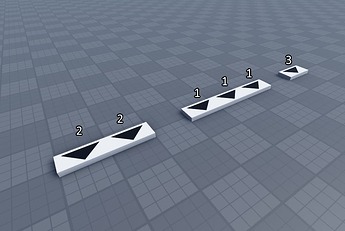

after:
