Round part based on angle of previous segment

NinjoOnline · April 22, 2022, 2:56am

I’m wanting to round the players second pole to a 45 degree angle. Atm, I have to just deny the pole movement unless you on that angle. Problem is, if I move my mouse out to extend the length, it doesn’t move unless I’m on that 45 degree

local function Angle(vectorA, vectorB)
	if vectorA.X == vectorB.X then
		return true
	elseif vectorA.Z == vectorB.Z then
		return true
	else
		return math.abs((vectorB - vectorA).X) == math.abs((vectorB - vectorA).Z)
	end
end

local Pole1 = pole.Parent.Pole1

local NewCFrame = CFrame.new(
	Round(
		MouseClampedP + Vector3.new(0, pole.Size.X / 2, 0),
		5,
		playersPlot.Base.Position.Y + (pole.Size.X / 2) + 0.05)
) * CFrame.Angles(0, 0, math.rad(90))

local Angled = Angle(Pole1.Position, NewCFrame.Position)
if not Angled then return end

pole:PivotTo(NewCFrame)

-- Round
function RoundNumber(number, to)
	to = to or 1

	return math.floor(number/to + 0.5) * to
end

return function(vector, unit, yValue)
	return Vector3.new(RoundNumber(vector.X, unit), math.floor(yValue), RoundNumber(vector.Z, unit))
end

Basically, instead of

local Angled = Angle(Pole1.Position, NewCFrame.Position)
if not Angled then return end

I want the angle to be locked in with the NewCFrame, so I don’t have to do return if it’s not the angle

Imagine_Developing · April 22, 2022, 4:17am

I didn’t quite get you, but by reading the post I assume you want to snap rotation of the wall too along with movement. Here’s a quick snap code I wrote that achieves that using some basic trigonometry:

local function snap(vector1, vector2)
	if vector2 then
		local angle = math.round(math.atan2(vector2.Z - vector1.Z, vector2.X - vector1.X) / ROTATION_CONSTRAINT) * ROTATION_CONSTRAINT;
		local dist = math.abs((vector1 - vector2).Magnitude);
		vector1 += Vector3.new(dist * math.cos(angle), 0, dist * math.sin(angle));
	end

	local snapped = {}
	for i,axis in ipairs{ "X", "Y", "Z" } do
		snapped[i] = math.round(vector1[axis] / MOVE_CONSTRAINT) * MOVE_CONSTRAINT;
	end
	return Vector3.new(table.unpack(snapped));
end

And here’s the code I used to test:

local userInputService = game:GetService("UserInputService");
local workspace = game:GetService("Workspace");

local camera = workspace.CurrentCamera;

local MOVE_CONSTRAINT = 4;
local ROTATION_CONSTRAINT = math.rad(45);

local cPole1, cWall, cPole2;

local function snap(vector1, vector2)
	if vector2 then
		local angle = math.round(math.atan2(vector2.Z - vector1.Z, vector2.X - vector1.X) / ROTATION_CONSTRAINT) * ROTATION_CONSTRAINT;
		local dist = math.abs((vector1 - vector2).Magnitude);
		vector1 += Vector3.new(dist * math.cos(angle), 0, dist * math.sin(angle));
	end

	local snapped = {}
	for i,axis in ipairs{ "X", "Y", "Z" } do
		snapped[i] = math.round(vector1[axis] / MOVE_CONSTRAINT) * MOVE_CONSTRAINT;
	end
	return Vector3.new(table.unpack(snapped));
end

local function updateWall(wall, p1, p2)
	wall.Size = Vector3.new(1, 15, math.abs((p1 - p2).Magnitude));
	wall.CFrame = CFrame.new((p1 + p2) / 2, p2);
end

local function createWall()
	local wall = Instance.new("Part");
	wall.Name = "Wall";
	wall.Anchored = true;
	wall.Parent = workspace;
	return wall;
end

local function updatePole(pole, p)
	p = cPole1 and snap(cPole1.Position, p) or snap(p);
	pole.Position = p;
end

local function createPole(pos)
	local newPole = cPole1 and cPole1:Clone();
	if not newPole then
		newPole = Instance.new("Part");
		newPole.Size = Vector3.new(1, 15, 1);
		newPole.Transparency = 0.5;
		newPole.CanCollide = false;
		newPole.Anchored = true;
	end
	updatePole(newPole, pos);

	if cPole1 then
		cWall = createWall(cPole1.Position, newPole.Position);
		cPole2 = newPole;
	else
		cPole1 = newPole;
	end

	newPole.Position = pos;
	newPole.Parent = workspace;

	return newPole;
end

local function preview(pos)
	if cWall then
		updatePole(cPole2, pos);
		updateWall(cWall, cPole1.Position, cPole2.Position);
	else
		if cPole1 then updatePole(cPole1, pos); end
	end
end

local function getWorldPosition(sPos)
	local unit = camera:ScreenPointToRay(sPos.X, sPos.Y);
	local res = workspace:Raycast(unit.Origin, unit.Direction * 30, RaycastParams.new());
	if res then return res.Position; end
end

userInputService.InputBegan:Connect(function(key, processed)
	if processed then return; end
	if key.UserInputType ~= Enum.UserInputType.MouseButton1 then return; end

	if cPole1 and cPole2 and cWall then
		cPole1 = nil;
		cPole2 = nil;
		cWall = nil;
		return;
	end

	local pos = getWorldPosition(key.Position);
	if pos then
		createPole(pos);
	end
end);

userInputService.InputChanged:Connect(function(key, processed)
	if processed then return; end
	if key.UserInputType ~= Enum.UserInputType.MouseMovement then return; end

	local pos = getWorldPosition(key.Position);
	if pos then
		preview(pos);
	end
end);

EDIT:

Fixed a bug where the 2nd pole position didn’t snap after rotating
Implemented preview for fun (which made me detect the first bug)

NinjoOnline · April 22, 2022, 4:46am

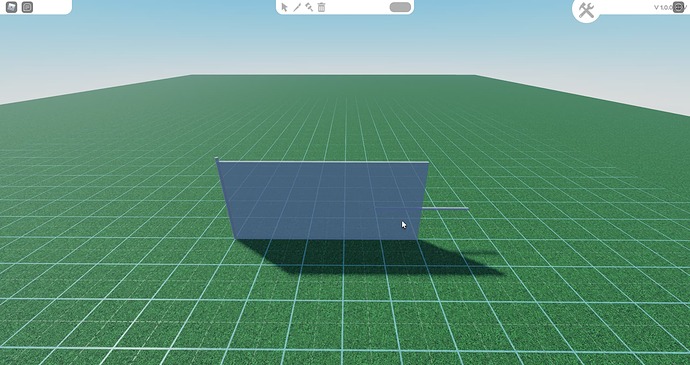

I need it still update the walls size as I move the mouse. But if my mouse is not in a 45 degree angle, it won’t move at all, due to

local Angled = Angle(Pole1.Position, NewCFrame.Position)
if not Angled then return end

Imagine_Developing · April 22, 2022, 4:48am

Correct me if I’m wrong, isn’t this what you’re asking for?

NinjoOnline · April 22, 2022, 4:49am

Yee

more charactersmore charactersmore charactersmore charactersmore characters

Imagine_Developing · April 22, 2022, 4:50am

I didn’t alter any of my code to attain that, the code posted in my previous post achieves that already.

NinjoOnline · April 22, 2022, 4:57am

It needs to work with poles tho. Cause of how Roblox orients them, they get rotated weirdly

Imagine_Developing · April 22, 2022, 5:26am

I made the Pole2 face the Pole1 just by changing the updatePole() function:

local function updatePole(pole, p)
	p = cPole1 and snap(cPole1.Position, p) or snap(p);
	pole.CFrame = cPole2 and CFrame.new(p, cPole1.Position) or CFrame.new(p);
end

For your cylinder being rotated like that, try multiplying a CFrame.fromEulerAnglesXYZ(math.rad(90), 0, 0):

pole.CFrame = (cPole2 and CFrame.new(p, cPole1.Position) or CFrame.new(p)) * CFrame.fromEulerAnglesXYZ(math.rad(90), 0, 0);

NinjoOnline · April 22, 2022, 7:28am

Unsure what I am doing wrong

local Pole1 = pole.Parent.Pole1
		local NewCFrame = CFrame.new(
			Round(
				MouseClampedP + Vector3.new(0, pole.Size.X / 2, 0),
				5,
				playersPlot.Base.Position.Y + (pole.Size.X / 2) + 0.05)
		) * CFrame.Angles(0, 0, math.rad(90))

		pole.Position = snap(Pole1.Position, NewCFrame.Position)
		pole:PivotTo(pole.CFrame * CFrame.fromEulerAnglesXYZ(math.rad(90), 0, 0))

also tried

local Pole1 = pole.Parent.Pole1
		local NewCFrame = CFrame.new(
			Round(
				MouseClampedP + Vector3.new(0, pole.Size.X / 2, 0),
				5,
				playersPlot.Base.Position.Y + (pole.Size.X / 2) + 0.05)
		) * CFrame.Angles(0, 0, math.rad(90))
		local pos = snap(Pole1.Position, NewCFrame.Position)
		pole.CFrame = CFrame.new(pos, Pole1.Position) * CFrame.fromEulerAnglesXYZ(math.rad(90), 0, 0);

same problem

NinjoOnline · April 24, 2022, 11:33am

Managed to get it working, but problem is it doesn’t clamp to the grind, meaning they can have the pole outside of the grind

local MouseClampedP = ClampMouse(MouseHit.Position, lowerX, upperX, lowerZ, upperZ)

local Pole1 = pole.Parent.Pole1
		local NewCFrame = CFrame.new(
			Round(
				MouseClampedP + Vector3.new(0, pole.Size.X / 2, 0),
				Constants.GRID_SIZE,
				playersPlot.Base.Position.Y + (pole.Size.X / 2) + 0.05)
		) * CFrame.Angles(0, 0, math.rad(90))

		local SnappedPos = Snap(Pole1.Position, NewCFrame.Position)
		pole:PivotTo(CFrame.new(SnappedPos + Vector3.new(0, 1, 0)) * CFrame.fromEulerAnglesXYZ(0, 0, math.rad(90)))

Point of ClampMouse basically clamps the mouse position to be within the bounding area of the grid, but obvs this isn’t working with rotated walls
