Hi Creators!
We wanted to share some improvements we’ve made to the Server Authority Studio Beta.
Misprediction Rates Keep Getting Better
The Roblox physics team has been working on reducing mispredictions. You don’t need to do anything for these changes; they have been slowly rolling out and we’re hopeful you’ve been seeing the gradual improvements.

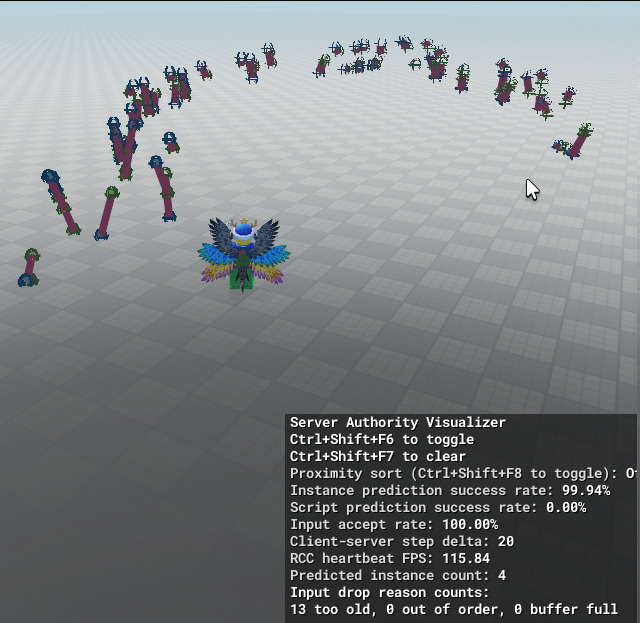

Before

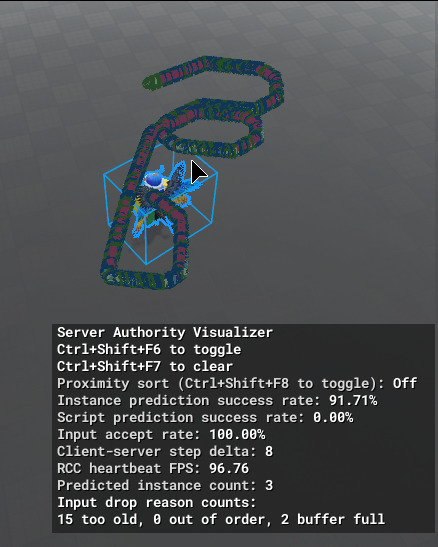

After

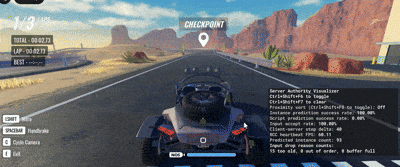

Note: Those red streaks behind the car are alerts for mispredictions. Reminder that you can press Ctrl + Shift + F6 (windows) or Cmd (⌘) + Shift + F6 (mac) while playtesting in Studio to toggle this Server Authority visualizer on or off.
New Animation System
Why This Matters
Animations modify character Part transforms and therefore impact simulation. This change enables animations to synchronize and resimulate across the client and server when using Server Authority, which helps further prevent mispredictions. Experiences that rely on animations to affect physics and gameplay can now rely on animations synchronizing correctly and authoritatively across clients.
Changes to Animation APIs
The Roblox Animation System API changes to note include:
- Animate Script: Just like any other Luau game script, the default Animate script requires adaptation to work in Server Authority. The redesign moves all critical internal state to attributes on the HumanoidRootPart, allowing for correct rollback of script logic during resimulation.
- AnimationTrack references cannot outlive a single frame: Since Server Authority may stomp on locally-playing animations, you cannot rely on AnimationTrack references to be valid beyond a single frame. Instead, you may use
Animator:GetPlayingAnimationTracks()to acquire handles to tracks that are active on the Animator. - New Limit on Number of Concurrent Tracks per Animator: In Early Access, the new limit for concurrent tracks in server authority will be 8. We plan to increase this limit in subsequent updates. Developers will need to pay close attention to this limit and ensure that they don’t leak tracks.
- Tool Animations: The logic for tool animations has changed. Instead of relying on the creation and removal of a StringValue instance for activation, tools must now set an attribute on their handle to trigger slash or lunge animations.
- LocalPlayer Simulation: In Server Authority, there is no client-to-server replication exception for LocalPlayer animations. Instead, both the client and the server simulate animations independently. If the client diverges from the server’s authoritative state, the client rolls back and resimulates to match the server.
Code Sample
The samples below explain how to adapt animation code and why the old Animate script is incompatible.
Click here to view
Old Animate Script
Note: LocalScript with local variables that don’t get rolled back in Server Authority resimulation.
-- This handle cannot be trusted from frame to frame because of SA.
local currentAnimTrack = nil
-- This variable doesn't get rolled back.
local pose = "Standing"
humanoid.Running:Connect(function(speed)
pose = if speed > 0 then "Running" else "Standing"
end)
-- ...
local function stepAnimate(time)
if (pose == "Seated") then
if currentAnimTrack then
currentAnimTrack:Stop(0)
currentAnimTrack:Destroy()
end
currentAnimTrack = animator:LoadAnimation(sitAnimation)
currentAnimTrack:Play()
elseif (pose == "Running") then
-- ...
end
end
while character.Parent ~= nil do
local _, currentGameTime = wait(0.1)
stepAnimate(currentGameTime)
end
New Animate Script
Note: ModuleScript required by both server and client. State is stored in Attributes so it gets rolled back during resimulation.
local module = {}
-- ...
-- TODO: This will eventually be added to the Animator API
local function getPlayingAnimationTrackFromID(animationId) ... end
function module.setup()
-- Attributes are rolled back in resim:
humanoid:SetAttribute("previousHumanoidState", humanoid:GetState())
humanoid:SetAttribute("currentAnimId", "")
local function stepAnimate(dt)
local currentState = humanoid:GetState()
if currentState == humanoid:GetAttribute("previousHumanoidState") then
return -- no changes
end
if currentState == Enum.HumanoidStateType.Seated then
local currentAnimId = humanoid:GetAttribute("currentAnimId")
local track = getPlayingAnimationTrackFromID(currentAnimId)
if track then
track:Stop(0)
-- No need to Destroy; Animator manages track lifetime.
end
track = animator:LoadAnimation(sitAnimation)
track:Play()
humanoid:SetAttribute("currentAnimId", sitAnimation.AnimationId)
elseif currentState == Enum.HumanoidStateType.Running then
-- ...
end
humanoid:SetAttribute("previousHumanoidState", currentState)
end
RunService:BindToSimulation(function(deltaTime)
stepAnimate(deltaTime)
end)
end
return module
Performance Expectations
When utilizing Server Authority, you can expect some extra performance and bandwidth overhead.
- Server Compute: The server incurs extra simulation overhead because it needs to execute the Animate script as well.
- Client Compute: Clients require resimulation when their state diverges far enough from the server’s. Resimulation triggers the animation step several times before the next render frame in order to catch up to the latest time step.
- Network Bandwidth: You may notice some additional network overhead due to the additional state that replicates for synchronization. We’re actively working on addressing this overhead.
Work in Progress
The Early Access version of Animation Server Authority is missing several features/has several known issues that we are actively working on fixing:
- When misprediction rates are high, animations may replay incorrectly or too fast. We’re actively looking into fixing this issue and should have an improvement rolled out in a few days.
- Compatibility with the Adaptive Animations beta feature will be supported soon.
- Custom emotes and strafing animations currently aren’t supported with the new Animate script.
Putting It All Together
With the animation and misprediction updates, check out how much smoother character movement has become!

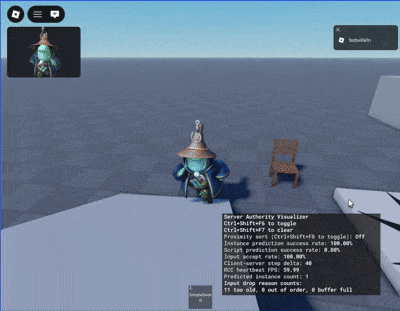

Before

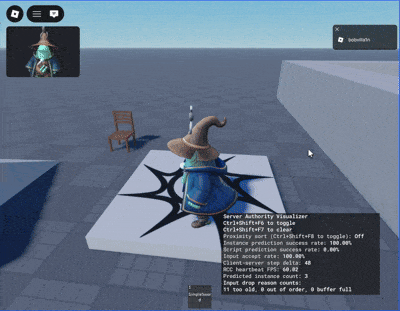

After
Release Date
We know many of you are eager for Server Authority to go live so that you can publish your games using this new tech. We are too and we’re getting close! The team is optimizing and polishing the product and we hope to ship in 1-2 months. We will keep you updated.
Reminder, if you want to publish and test your game with Server Authority with a few friends, check out our Early Access post and comment for access. Anyone enrolled here will be able to correctly experience a Server Authority published game. Note, we process these requests once every week or so.
Last, we wanted to remind folks of our Server Authority documentation, which includes templates, our advanced techniques documentation, and this post by our own network engineer @Khanovich that discusses Server Authority.
As always, please share any and all feedback so we can continue improving this feature.
Happy creating,
The Roblox Server Authority Team
