Size keeps changing

Help and Feedback Scripting Support
#1

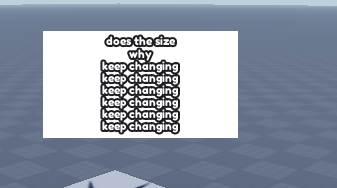

This is a lore/pop up, for some reason while moving it the size changes
sizechanging.rbxl (60.1 KB)

1 Like
#2

Your text label’s “Scaled” property is causing the problem. If you turn off “text scaled” then it’ll be fine. Use text padding instead of creating 3 empty text labels.

1 Like
#3

Why would I turn off text scaled? The whole frame’s size is changing along with the text

#4

Sorry- looks like I was wrong. Just make a new frame and the bug’s fixed. I can’t tell what property is causing it.

Edit::

Found it. It’s your “Automatic Size” property. Set it to none.

1 Like
#5

Yeah I’ll use padding instead of the empty texts good idea

New frame inside of that frame? Also do I keep text scaled or not?

#6

Keep it scaled- the only issue with it was your “AutomaticSize” property which was sizing it based off your aspect ratio. Apologies about the previous response.

#7

No worries, I can’t seem to fix the issue, could you upload the file by any chance?

It keeps scaling the frame

1 Like
#8

It seems like an issue with the new flex features, specifically VerticalFlex being set to Fill. I would recommend resizing your TextLabels and changing VerticalFlex to None instead, centering other properties as needed.

Edit: It seems like it might be a bugged behavior with AutomaticSize. Setting it to None fixed it for me. It’s kind of a problem with Roblox’s 2D engine - anything scaled doesn’t really function well with other features.

#9

Yes, I see however the whole point is so the new elements get added and expand the frame automatically


Desired:


#10

Yeah, unfortunately scaled doesn’t work too well with existing features. In your case, it’s kind of a weird math cycle: Scaled property determines size from parent → Parent automatic resize from elements → Repeat.

#11

I’m guessing it’s scaling based off his roblox game’s aspect ratio, which is how I assume it’s being calculated.

#12

Possibly. I personally despise using scaled property, which is why I code my own UI scaling via UIScale, which performs scaling after all the elements’ calculations.

#13

That’s also a fair point. I don’t work with ui’s (rip whoevers going to use my module) which makes me somewhat unqualified to answer this.

#14

Any solution? Been trying to fix this for awhile, not sure what to do

#15

My best solution is what I pointed out above - work with offset and scale via code. I’ll see if I can get a working version using scaled for you right now.

1 Like
#16

Unfortunately I cannot. AutomaticSizing does not work properly with contents that are scaled and resizes itself weirdly due to the mechanic I mentioned above.

Work with offset instead in this scenario and insert a UIScale inside of the ScreenGui. Below is a LocalScript code you can use to automatically scale it for you:

--!strict

local UIScale: UIScale = script.Parent
local CurrentCamera: Camera = workspace.CurrentCamera

-- base resolution to scale from (what you used to make your UI)
local BASE_RESOLUTION: Vector2 = Vector2.new(1920, 1080)
-- determines whether to use the largest or smallest ratio
local USE_LARGEST_RATIO: boolean = true

local function onViewportSizeChanged(): ()
	local xRatio: number = CurrentCamera.ViewportSize.X / BASE_RESOLUTION.X
	local yRatio: number = CurrentCamera.ViewportSize.Y / BASE_RESOLUTION.Y

	UIScale.Scale = if USE_LARGEST_RATIO == true then math.max(xRatio, yRatio) else math.min(xRatio, yRatio)
end

CurrentCamera:GetPropertyChangedSignal("ViewportSize"):Connect(onViewportSizeChanged)
onViewportSizeChanged()

There is a caveat where if you are positioning an element, you would have to divide by the UIScale.Scale property:

someElement.Position = UDim2.fromOffset(mousePosition.X / scale, mousePosition.Y / scale)

It also scales from the aspect ratio of the original element, acting as if there is a UIAspectRatioConstraint on the element. Unfortunately there is no way around this using this method at the moment.

#17

Thank you, could you by any chance link this up in the place I provided? I tried importing and switch the positions on offset but it still does it, maybe because I’m still using AutomaticSize on XY?

#18

CustomScalingAndPositioning.rbxl (60.3 KB)
Using the same code as above and the code below to position, accounting for scaling and topbar inset:

--!strict

local UserInputService = game:GetService("UserInputService")
local GuiService = game:GetService("GuiService")

local Frame = script.Parent
local UIScale = Frame.Parent.UIScale
local CurrentCamera: Camera = workspace.CurrentCamera

local function update(): ()
	local mouseLocation: Vector2 = UserInputService:GetMouseLocation()
	local topbarInset: Rect = GuiService.TopbarInset
	local toXLocation: number = mouseLocation.X / UIScale.Scale
	local toYLocation: number = (mouseLocation.Y - topbarInset.Height) / UIScale.Scale

	Frame.Position = UDim2.fromOffset(toXLocation, toYLocation)
end

GuiService:GetPropertyChangedSignal("TopbarInset"):Connect(update)

CurrentCamera:GetPropertyChangedSignal("ViewportSize"):Connect(update)

UserInputService.InputChanged:Connect(function(inputObject: InputObject): ()
	if inputObject.UserInputType == Enum.UserInputType.MouseMovement then
		update()
	end
end)

update()
1 Like
#19

Thank you, this sorts out the sorting problem but I was looking for the frame’s X and Y be based off of the largest text so it could represent a lore type of system

Like this for example

#20

Yes, you can do that with offsets! Instead of using a set size for your TextLabels, set the Size back to {0, 0}, {0, 0} and AutomaticSize to XY. You may also need to turn off TextScaled to false and manually set the size since text size also automatically changes with UIScale.
