I’m trying to make it so my ghostStickyNoteModel (its called that but it’s a part) hovers over where my mouse is but essentially rotates to the surface its on.

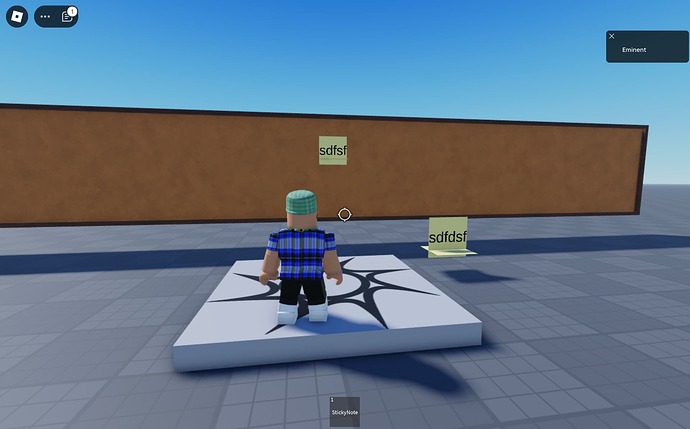

For example, if my mouse is pointed and hovering over the ground, it should place the note horizontally and flat on the ground, instead, it places it upright for some reason and also if I hover for too long it for some reason flies up and places in mid air like in the screenshot below:
(Please help me out with this issue because I already posted about this issue and nobody saw my post)
My code should be ok but these bugs are ruining the experience completely. If im hovering my mouse on a wall, then it should place upright on the wall.
Here’s the script I call “StickyNoteScript” that handles most of the positioning:
-- StickyNote Tool Script
-- Important: Ensure that the sticky note tool has "RequiresHandle" unchecked
local tool = script.Parent
local player = game.Players.LocalPlayer
local mouse = player:GetMouse()
local replicatedStorage = game:GetService("ReplicatedStorage")
local stickyNoteModel = replicatedStorage:WaitForChild("StickyNoteModel")
local ghostStickyNoteModel = replicatedStorage:WaitForChild("GhostStickyNoteModel")
local ghostNote
local lastPlacedTime = 0
local cooldownTime = 10
local toolEquipped = false
local function isSurface(target)
return target and target:IsA("Part") and not target:IsA("MeshPart") and target.CanCollide
end
local function updateGhostNote(mouseHit)
if not ghostNote then
ghostNote = ghostStickyNoteModel:Clone()
ghostNote.Parent = workspace
end
-- Position the ghost note directly above the surface
local ghostPosition = mouseHit.Position + Vector3.new(0, 0.05, 0) -- Adjust to be just above the surface
ghostNote.CFrame = CFrame.new(ghostPosition) * CFrame.Angles(math.rad(-90), 0, 0) -- Keep it flat
ghostNote.Transparency = 0.5
end
local function removeGhostNote()
if ghostNote then
ghostNote:Destroy()
ghostNote = nil
end
end
local function placeStickyNote(mouseHit)
local currentTime = tick()
if currentTime - lastPlacedTime < cooldownTime then
return
end
local target = mouse.Target
if not isSurface(target) then
return
end
local stickyNotePosition = mouseHit.Position + Vector3.new(0, 0.05, 0)
-- Create the sticky note
local newStickyNote = stickyNoteModel:Clone()
newStickyNote.CFrame = CFrame.new(stickyNotePosition) * CFrame.Angles(math.rad(-90), 0, 0)
newStickyNote.Parent = workspace
newStickyNote.Name = "StickyNote"
lastPlacedTime = currentTime
end
tool.Equipped:Connect(function()
toolEquipped = true
mouse.Move:Connect(function()
if toolEquipped then
updateGhostNote(mouse.Hit)
end
end)
mouse.Button1Down:Connect(function()
if toolEquipped then
placeStickyNote(mouse.Hit)
end
end)
end)
tool.Unequipped:Connect(function()
removeGhostNote()
toolEquipped = false
end)
Here’s the script I call “StickyNoteGuiScript” that handles the placement:
-- LocalScript for Sticky Note GUI
local player = game.Players.LocalPlayer
local screenGui = script.Parent
local noteFrame = screenGui:WaitForChild("NoteFrame")
local textBox = noteFrame:WaitForChild("TextBox")
local confirmButton = noteFrame:WaitForChild("ConfirmButton")
local cancelButton = noteFrame:WaitForChild("CancelButton")
local tool = player.Backpack:WaitForChild("StickyNote")
local tempStickyNote -- Variable to hold reference to the temporary sticky note being created
local ghostNote -- Reference to the ghost sticky note
local clickPosition -- Variable to hold the position where the note will be placed
local function hideGhostNote()
if ghostNote then
ghostNote:Destroy() -- Removes the ghost note
ghostNote = nil
end
end
local function createStickyNote(position, noteText)
local stickyNoteModel = game.ReplicatedStorage:WaitForChild("StickyNoteModel"):Clone()
stickyNoteModel.Position = position
stickyNoteModel.Parent = workspace
local surfaceGui = stickyNoteModel:FindFirstChild("SurfaceGui")
if surfaceGui then
local textLabel = surfaceGui:FindFirstChild("TextLabel")
if textLabel then
textLabel.Text = noteText -- Sets the text of the sticky note
end
end
return stickyNoteModel
end
local function onConfirmButtonClicked()
local noteText = textBox.Text
if noteText and noteText ~= "" and clickPosition then
-- Create and place the sticky note
local placedStickyNote = createStickyNote(clickPosition, noteText)
noteFrame.Visible = false -- Close the note frame after confirming
textBox.Text = "" -- Clear the text box
hideGhostNote() -- Hide the ghost note when done
tempStickyNote = nil -- Reset the temporary sticky note reference
end
end
local function onCancelButtonClicked()
if tempStickyNote then
tempStickyNote:Destroy() -- Remove only the temporary sticky note if it exists
end
noteFrame.Visible = false -- Hides the note frame
textBox.Text = "" -- Clears the text box
hideGhostNote() -- Hides the ghost note when canceled
end
local function showNoteFrame(position)
noteFrame.Visible = true -- Shows the note frame
textBox.Visible = true -- Shows the TextBox
confirmButton.Visible = true -- Shows the ConfirmButton
cancelButton.Visible = true -- Shows the CancelButton
clickPosition = position -- Stores the position where the sticky note will be placed
tempStickyNote = createStickyNote(position, "") -- Creates a temporary sticky note with no text
hideGhostNote() -- Hides the ghost note when editing
end
tool.Activated:Connect(function()
if not noteFrame.Visible then -- Checks if the note frame is already visible
local mouse = player:GetMouse()
local target = mouse.Target
if target then
local targetPosition = mouse.Hit.Position + Vector3.new(0, 1, 0) -- Adjusts Y to position above the surface
showNoteFrame(targetPosition) -- Shows the note frame with the position
end
end
end)
confirmButton.MouseButton1Click:Connect(onConfirmButtonClicked) -- Connects the confirm button click
cancelButton.MouseButton1Click:Connect(onCancelButtonClicked) -- Connects the cancel button click
Here’s my explorer:
Bonus bug challenge:
This other script isn’t taking the text from my stickynotemodels’s text label in the surfacegui inside the stickynotemodel.
-- LocalScript for Opening the Sticky Note GUI
local openNoteFrame = script.Parent -- Reference to the GUI
local closeButton = openNoteFrame:WaitForChild("CloseButton") -- Reference to the close button
local noteTextLabel = openNoteFrame:WaitForChild("TextLabel") -- Reference to the TextLabel that will show the note's contents
-- Function to open the GUI and set the note text
local function openNoteGUI(noteText)
openNoteFrame.Visible = true -- Show the note frame
noteTextLabel.Text = noteText -- Set the note text in the GUI
end
-- Function to connect the ClickDetector to the openNoteGUI function
local function setupClickDetector(stickyNote)
local clickDetector = stickyNote:FindFirstChild("ClickDetector")
if clickDetector then
clickDetector.MouseClick:Connect(function(player)
local surfaceGui = stickyNote:FindFirstChild("SurfaceGui") -- Find the SurfaceGui in the sticky note
if surfaceGui then
local textLabel = surfaceGui:FindFirstChild("TextLabel") -- Find the TextLabel in the SurfaceGui
if textLabel then
openNoteGUI(textLabel.Text) -- Open the GUI with the text from the sticky note
end
end
end)
end
end
-- Set up the click detectors for existing StickyNoteModels in workspace
local function setupClickDetectors()
for _, child in ipairs(workspace:GetChildren()) do
if child:IsA("Part") and child.Name == "StickyNoteModel" then -- Check if it's a sticky note
setupClickDetector(child)
end
end
end
-- Set up the click detectors initially
setupClickDetectors()
-- Hide the GUI when the close button is clicked
closeButton.MouseButton1Click:Connect(function()
openNoteFrame.Visible = false
end)
-- Update the setupClickDetectors function to work with new notes
workspace.ChildAdded:Connect(function(child)
if child:IsA("Part") and child.Name == "StickyNoteModel" then -- Ensure it's the correct model
setupClickDetector(child)
end
end)
So when I click on a note to see it more clearly in my opennotegui, its an empty note and the text isn’t displayed.
Any help is highly appreciated! I’ve spent over 4 hours trying to fix this without ever figuring it out so please lend me a hand with these bugs.
