Trying to rotate lasers around part

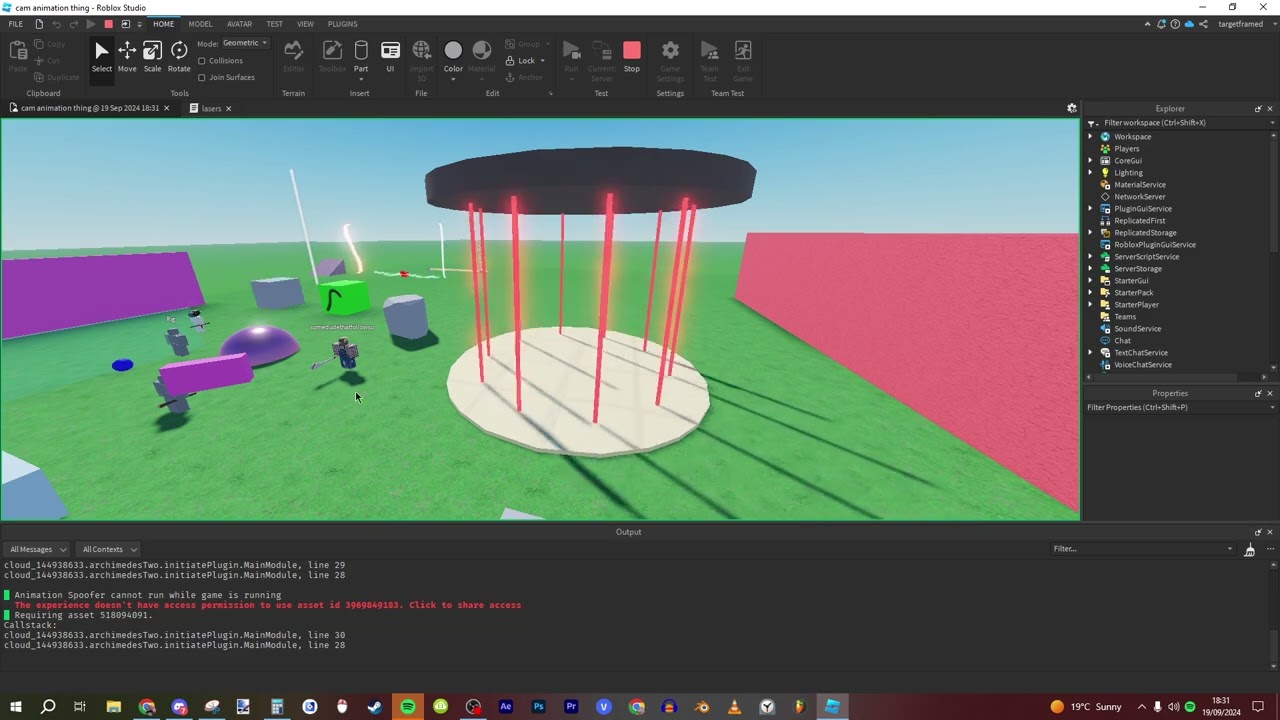

i made this where it creates lasers in a circle around my beige cylinder part but im trying to make it so that my parts are continuously rotating.

local cyl = script.Parent
local roof = workspace.roof
local radius = 15
local numberofParts = 10
local tweenService = game:GetService("TweenService")
local nightTime = true

local function createLasers()
	local laserparts = {}
	for i = 1, numberofParts do
		local angle = (math.pi * 2 / numberofParts) * i
		local cylTop = cyl.Position + Vector3.new(0,cyl.Size / 2,0)
		local roofBottom = roof.Position - Vector3.new(0,roof.Size / 2,0)
		local laserPartHeight = (roofBottom.Y - cylTop.Y)

		local x = radius * math.cos(angle)
		local z = radius * math.sin(angle)

		local laserPart = Instance.new("Part", cyl)
		laserPart.Shape = Enum.PartType.Cylinder
		laserPart.Anchored = true
		laserPart.Name = "laserPart"
		laserPart.Size = Vector3.new(laserPartHeight, .5 ,.5)
		laserPart.Material = Enum.Material.Neon
		laserPart.Color = Color3.new(1, 0.321569, 0.321569)
		local position = cyl.Position + Vector3.new(x, cyl.Size.X / 2 + laserPart.Size.X / 2, z)
		laserPart.CFrame = CFrame.new(position) * CFrame.Angles(math.rad(0), math.rad(0), math.rad(90))

		table.insert(laserparts, laserPart)
	end

	return laserparts
end

local function rotateLasers(laserparts)

end

local LaserParts = createLasers()

I would use a separate part and use it as the Pivot.
^ Assuming this is the pivot, you can add a BasePart onto the middle of the cylinder and set that in a Model as the PrimaryPart.

An easy way to rotate this would be to weld all of those lasers onto the pivot using a WeldConstraint, then write some code that rotates the pivot, then the lasers will follow.

If you DON’T want to use welds, then I would try using :PivotTo(), but I’m unsure if the lasers will follow your pivot.

1 Like

Are you only going to use a fixed amount of lasers, or is it going to change due to variables in the game?
If it’s always going to be 10 lasers then you don’t need to do all the scripting.
Just create them in studio, place them around the beige Part as a Model, and CFrame the Model’s rotation. You could also tween them to the next laser’s position (just 36°), reset them back to 0°, and keep repeating after that.

1 Like

i really shouldve done that in the first place. i just didnt think of it. thanks so much astro!! i ended up taking a longer route to get it done but oh well. cheers mate!!!

yeah i was making a fixed amount of lasers. i took a really long route to get the desired result but i did learn a few things along the way.

i really appreciate your help Scott, you’re always around to give help so thank you so much mate. have an amazing one :+1:

1 Like

for any1 trying to do something like this, this is the script:

local cyl = script.Parent
local roof = workspace.roof
local radius = 15
local numberofParts = 10
local tweenService = game:GetService("TweenService")
local rs = game:GetService("RunService")
local nightTime = true
local cooldown = false

local function createLasers()
	local laserparts = {}
	local cylTop = cyl.Position + Vector3.new(0,cyl.Size / 2,0)
	local roofBottom = roof.Position - Vector3.new(0,roof.Size / 2,0)
	local laserPartHeight = (roofBottom.Y - cylTop.Y)

	for i = 1, numberofParts do
		local angle = (math.pi * 2 / numberofParts) * i

		local x = radius * math.cos(angle)
		local z = radius * math.sin(angle)

		local laserPart = Instance.new("Part", cyl)
		laserPart.Shape = Enum.PartType.Cylinder
		laserPart.Anchored = true
		laserPart.Name = "laserPart"
		laserPart.Size = Vector3.new(laserPartHeight, .5 ,.5)
		laserPart.Material = Enum.Material.Neon
		laserPart.Color = Color3.new(1, 0.321569, 0.321569)
		local position = cyl.Position + Vector3.new(x, cyl.Size.X / 2 + laserPart.Size.X / 2, z)
		laserPart.CFrame = CFrame.new(position) * CFrame.Angles(math.rad(0), math.rad(0), math.rad(90))

		table.insert(laserparts, laserPart)
	end

	return laserparts, laserPartHeight
end

-- Function to rotate the lasers around the cylinder
local function rotateLasers(laserparts, laserpartHeight)
	local time = tick()
	local angle = time % (2 * math.pi) -- Ensure angle stays within 0 to 2*pi

	for i, laserPart in ipairs(laserparts) do
		local partAngle = (math.pi * 2 / numberofParts) * i
		local x = radius * math.cos(partAngle + angle)
		local z = radius * math.sin(partAngle + angle)

		-- Position laser part on the circle around the cylinder base
		local position = cyl.Position + Vector3.new(x, laserpartHeight / 2, z)
		-- Update the laser part's position
		laserPart.CFrame = CFrame.new(position) * CFrame.Angles(0, 0, math.rad(90))
	end
end

local laserParts, laserPartHeight = createLasers()

-- Update the lasers' positions continuously
rs.Heartbeat:Connect(function()
	rotateLasers(laserParts, laserPartHeight)
end)

local function giveLasersDamage(laserparts)

	for _, laserpart in ipairs(laserparts) do
		laserpart.Touched:Connect(function(hit)
			local hum:Humanoid = hit.Parent:FindFirstChildOfClass("Humanoid")

			if hum then
				if not cooldown then
					cooldown = true
					hum:TakeDamage(30)
					task.wait(.5)
					cooldown = false
				end
			end

		end)
	end

end

giveLasersDamage(laserParts)

Oh god that’s a lot of effort. :laughing:
10 cylinder laser Parts, welded to a center Part, with a HingeConstraint in it attached to either the white or black Parts, and you could change the AngularVelocity of the HingeConstraint to make it spin as fast as you want.
