I’m trying to use .Noise to generate a Hill using the below code:
if Selection ~= nil then
for __,i in (self.Terrain:GetChildren(...)) do
local Distance = (Selection.Position - i.Position).Magnitude
if Distance < 20 then
local Noise = math.noise(i.Position.X/NOISE_SPACE, i.Position.Y, i.Position.Z/NOISE_SPACE)
i.Position = Vector3.new(i.Position.X, i.Position.Y + Noise * NOISE_SIZE, i.Position.Z)
end
end
end
However I get some undesired results:
The code itself works for generating the terrain shown however for some reason it won’t create the ‘bump’?
Does anyone have any suggestions.
Definitely shouldn’t be using math.noise for this, after this seems to be more like Blender’s proportional editing, where parts closer to the part being raised get raised more than parts further away from it. The code would look more like:
if Selection ~= nil then
for __, i in (self.Terrain:GetChildren(...)) do
local Distance = (Selection.Position - i.Position).Magnitude
if Distance < 20 then
-- Raise height is just how far the center part moves
local falloff = RaiseHeight / Distance -- You can change the falloff to be whatever you want
i.Position = Vector3.new(i.Position.X, i.Position.Y + falloff, i.Position.Z)
end
end
end
if Selection ~= nil then
for __, i in (self.Terrain:GetChildren(...)) do
local Distance = (Selection.Position - i.Position).Magnitude
if Distance < 20 then
-- Raise height is just how far the center part moves
local falloff = if distance ~= 0 then RaiseHeight / Distance else RaiseHeight -- You can change the falloff to be whatever you want
--Assumes distance > 1, use a bump function if not
i.Position = Vector3.new(i.Position.X, i.Position.Y + falloff, i.Position.Z)
end
end
end
Brilliant so far! Thank you!
Final issue I run into is the speed difference - I assume this is because it’s going beyond the magnitude so certain parts start moving. Is there any way of clamping it so the Parts move regardless / at a similar rate?
It wouldn’t really make sense for them to go at the same speed, as they’re travelling different distances in the same time. If you want the other parts to be closer to the center part, just tack on a scalar at the front.
if Selection ~= nil then
for __, i in (self.Terrain:GetChildren(...)) do
local Distance = (Selection.Position - i.Position).Magnitude
if Distance < 20 then
-- Raise height is just how far the center part moves
local falloff = if distance ~= 0 then k * RaiseHeight / Distance else RaiseHeight -- You can change the falloff to be whatever you want
--Assumes distance > 1, use a bump function if not
--k can be whatever
i.Position = Vector3.new(i.Position.X, i.Position.Y + falloff, i.Position.Z)
end
end
end
I’ve tried various different methods and still not quite at a decent place.
Does anyone have any suggestions on how I can best replicate the 2nd video?
I think you want both a more gradual falloff with distance, but also probably you only want to consider distance in the horizontal direction, not Y axis, otherwise the number of nearby tiles being affected will drop as the center block gets farther away from the rest.
The distance you want is probably:
local Distance = ((Selection.Position - i.Position) * Vector3.new(1,0,1)).Magnitude
In other words, just the XZ-plane distance, excluding Y.
Brilliant! - Big fan of your work btw.
I’ve got it working utilising that line:
for Part, Size in (self.Size) do
local Magnitude = ((Part.Position - self.Handles.Adornee.Position) * Vector3.new(1,0,1)).Magnitude
if Magnitude < 50 then
local goalSize = nil
if Part == self.Handles.Adornee then
goalSize = minimumVector(Size + toPositive(Vector3.fromNormalId(Face)) * Distance / 5)
else
goalSize = minimumVector(Size + toPositive(Vector3.fromNormalId(Face)) * (Distance / Magnitude))
end
Part.Size = goalSize
end
end
Only issue is the speed of which the centre one moves with the cursor.
I’ve had to dampen it using Distance / 5 otherwise the initial Part will become much larger / distanced from the other parts.

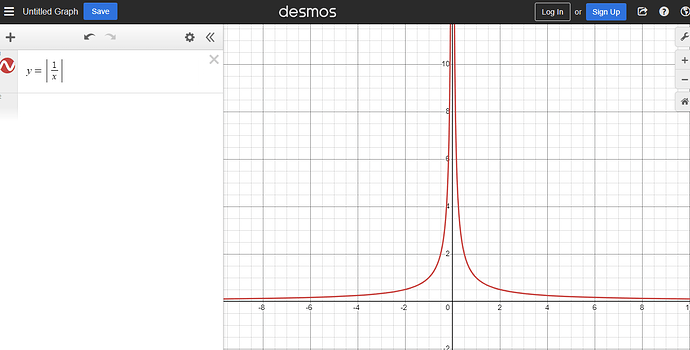

This is because constant / distance isn’t a convex bump, it’s a spike. Mathematically, it’s a surface of revolution of a hyperbola., so the slope is like 1/x:

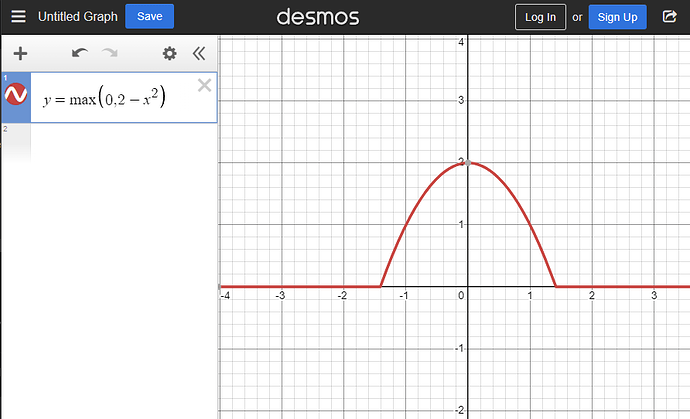

But there are lots of different “bump” functions. For things like hills, you don’t necessarily want the gradual falloff of the gaussian, you might use something like a parabola and just clamp negative values to zero, to make a hill like so:
Math gives you infinitely many interesting options that are all pretty simple functions.
You can multiply bump functions together too, like here is that parabola multipled by the square of the gaussian:
