Hey guys!
I’m gonna just keep it simple, I’m trying to make a vaulting system which is going kinda good…
[Besides the actual physics part]
I’m trying to achieve this:
[Taken from Jujutsu Shenanigans]
Yet this is what i have:

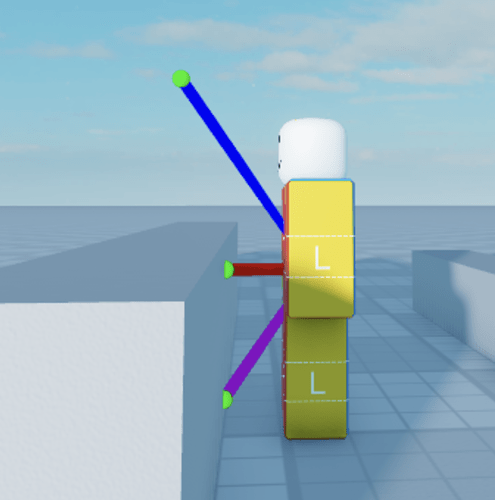

External MediaThe physics is just completely horrible, [I literally have NO idea what i’m doing]. I’ll be explaining the 3 beams you see on the character, which are apart of the detection system.
There’s a runservice stepped function, with a ray between a attachment [slightly below HRP.Position], to 2 studs infront of it.
If that ray hits something, another two rays will start, 55 degrees upwards, and downwards. [Pretty sure we can use these raycasts for the physics part]
If the Second Ray hits nothing, then it is allowed to vault. I’m not sure if this is the best way to do it, but i tried.
The code is just a rough example of what im doing, just removed some stuff that aren’t related / removed it from a module:
local LocalPlayer = game:GetService("Players").LocalPlayer
local Character = LocalPlayer.Character or LocalPlayer.CharacterAdded:Wait()
local CurrentCamera : Camera = workspace.CurrentCamera
local Humanoid : Humanoid = Character:FindFirstChildOfClass("Humanoid")
local RootPart : Part = Character:FindFirstChild("HumanoidRootPart")
local Animator : Animator = Humanoid:FindFirstChildOfClass("Animator")
local RaycastParams_ = RaycastParams.new()
RaycastParams_.FilterType = Enum.RaycastFilterType.Include
RaycastParams_.FilterDescendantsInstances = {workspace.Map}
_G.MapParams = RaycastParams_
local VaultOffset = 2
local VaultOffset2 = 4
local RootBeam : Beam = RootPart.Beam
local Raycast1Attc = RootPart.Raycast1
function MovementForce(TargetPart, Velocity, TargetVelocity, Duration, callback)
local BodyVelocity = Instance.new("BodyVelocity", TargetPart)
BodyVelocity.MaxForce = Vector3.new(40000, 40000, 40000)
BodyVelocity.P = 40000
BodyVelocity.Name = "MovementForce"
BodyVelocity.Velocity = Velocity
local velocityTweenProperties = { Velocity = TargetVelocity }
game:GetService('TweenService'):Create(BodyVelocity, TweenInfo.new(Duration / 3), velocityTweenProperties):Play()
task.delay(Duration, function()
BodyVelocity:Destroy()
if callback then callback() end
end)
end
game:GetService("RunService").RenderStepped:Connect(function(Delta)
local RootRaycast = workspace:Raycast(RootPart.Raycast1.WorldPosition, Raycast1Attc.WorldCFrame.LookVector * VaultOffset, RaycastParams_)
local SecondRay
local ThirdRay
local State = Humanoid:GetState()
local Can_Vault = false
if RootRaycast then
SecondRay = workspace:Raycast(Raycast1Attc.WorldPosition, (Raycast1Attc.WorldCFrame * CFrame.Angles(math.rad(55), 0, 0)).LookVector * VaultOffset2, RaycastParams_)
ThirdRay = workspace:Raycast(Raycast1Attc.WorldPosition, (Raycast1Attc.WorldCFrame * CFrame.Angles(math.rad(-55), 0, 0)).LookVector * VaultOffset2, RaycastParams_)
if not SecondRay then
Can_Vault = true
end
end
if Can_Vault
and not Character:GetAttribute("Vaulting")
and Character:GetAttribute("Sprint")
and (State ~= Enum.HumanoidStateType.Freefall and State ~= Enum.HumanoidStateType.Jumping) then
Character:SetAttribute("Vaulting", true)
MovementForce(
RootPart, RootPart.CFrame.LookVector * 20 + Vector3.new(0, 17.5, 0), -- Start Velocity
RootPart.CFrame.LookVector * 22, -- End Velocity
0.3, -- Duration
function() -- Call back [once ready]
Character:SetAttribute("Vaulting", false)
Character.Torso.CanCollide = true
end)
Character.Torso.CanCollide = false
-- LoadedAnimations.Vault["Track" .. math.random(1, 4)]:Play() [not sending the load animations code since it's basically useless in here]
end
end)
[this is directed to u
