Have you ever came across this issue where the Viewmodel is clipping through walls or floor?
take note this tutorial expect you to know how to make a viewmodel and knew intermediate scripting

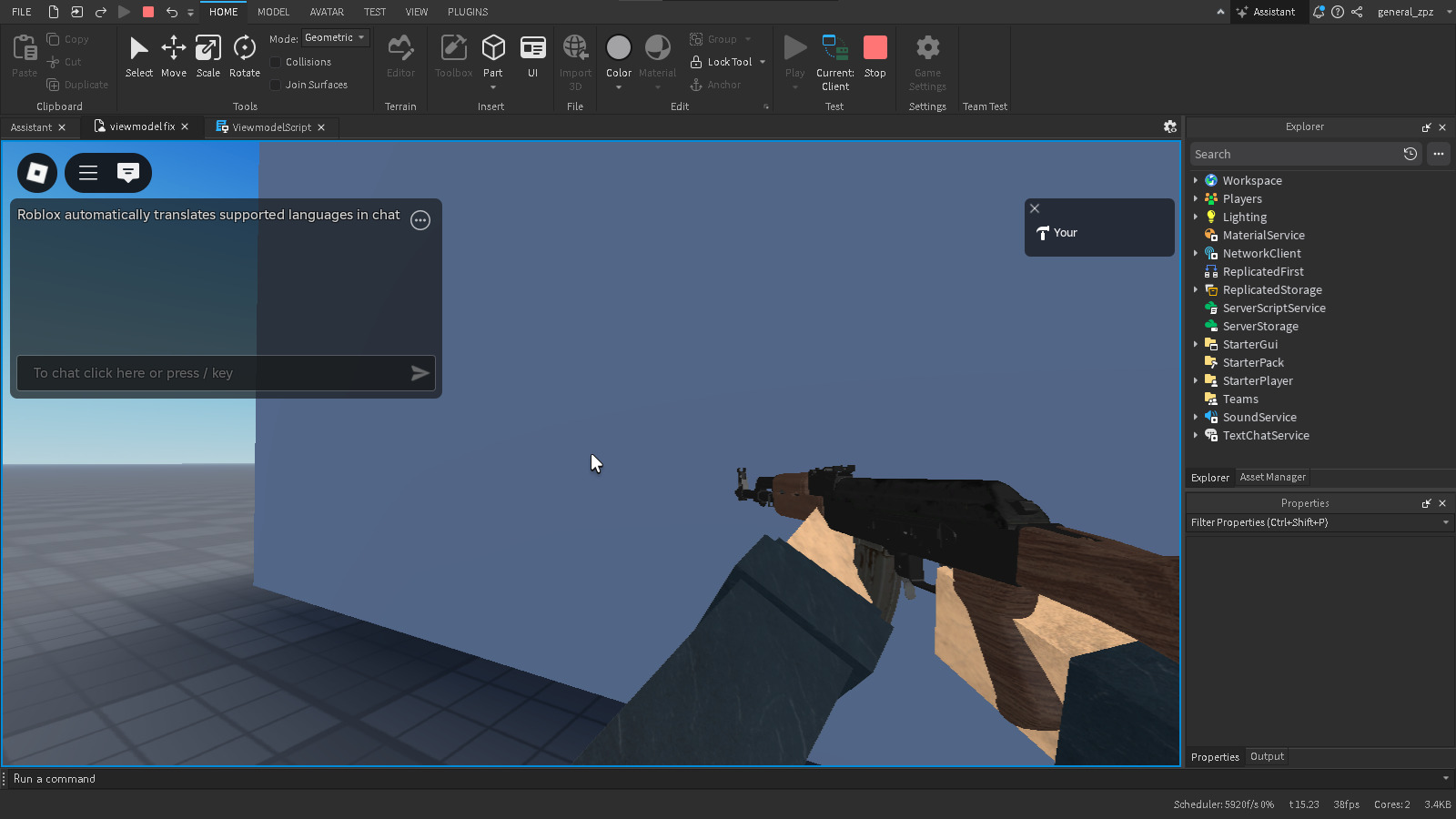

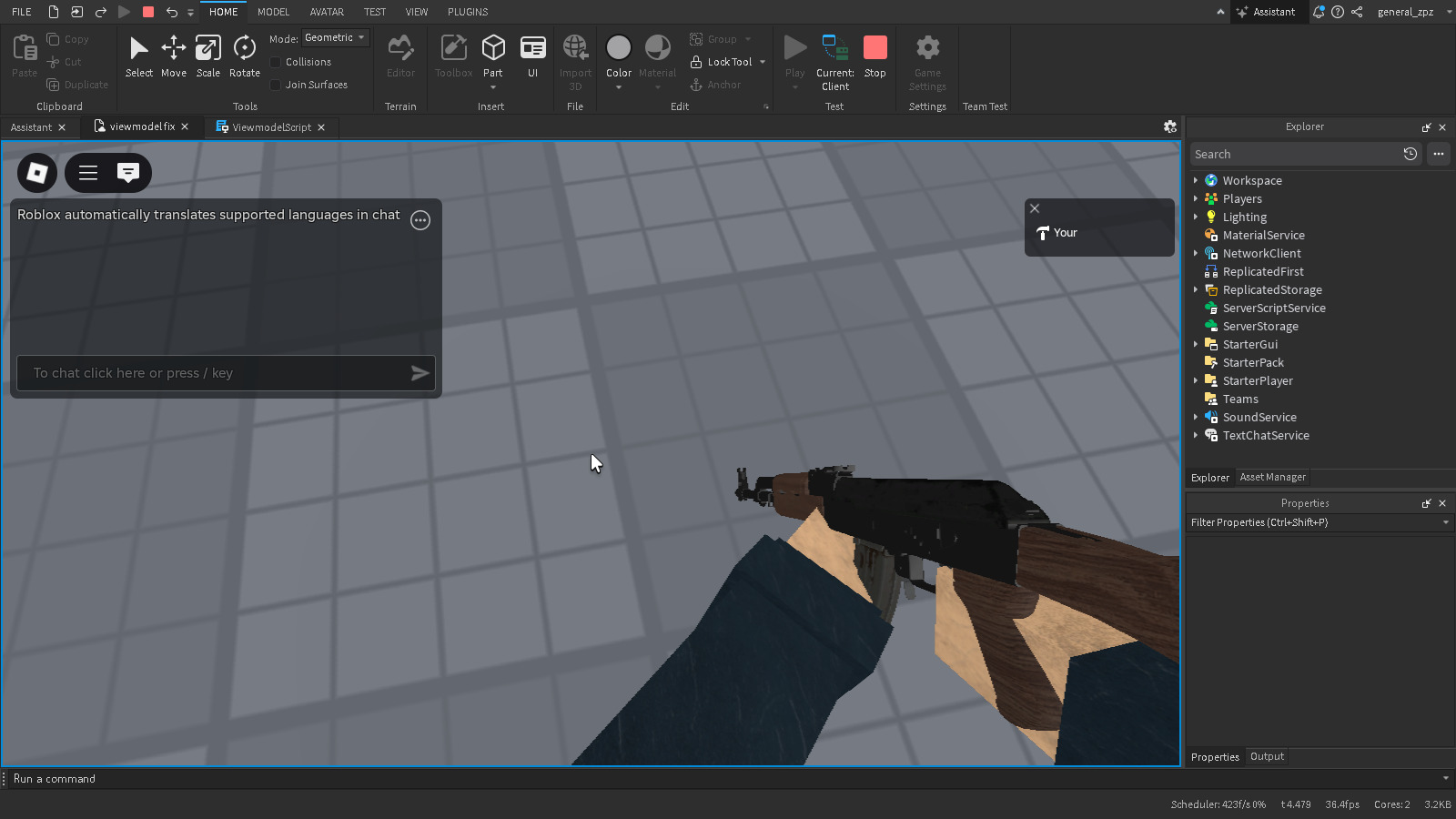

which looks like this… BUT there’s a method which takes it to another level
while it doesnt affect the game, if realistic games are implemented, it would/can be unethical as the hands literally clips through objects
But by applying this effect with a little modification to your code, it will eventually turn your game into more realistic feelings
This is actually done surprisingly easy!
How?
How is this done
Originally or Rather mostly; how games do it is they insert the Viewmodel as a game object itself, while it could work, since the game recognize the object as a physical BasePart, It’ll have a collision that’s why we see it clipping
some might script it this way:
local cam = workspace.CurrentCamera
local vm = script.Viewmodel:Clone()
local rs = game:GetService("RunService")
rs.RenderStepped:Connect(function()
vm.Parent = cam
vm:SetPrimaryPartCFrame(cam.CFrame)
end)
making the object exist in the workspace
but by adding a fake layer through our viewmodel and game object we can optimize it using Viewport Frame
Start by inserting a viewmodel with nothing in it
now we need to modify some property here,
First the ScreenGui’s property, turn on IgnoreGuiSet so it doesnt seem to get squish if you have big Viewmodel
Second the Viewport’s size, set it to 1,0,1,0 so it takes up the whole screen
Third now change the viwport’s background color to the map’s ambience because if we keep it as white, you will see a weird outline at your viewmodel; I highly recommend setting it to 95, 95, 95 because it is the default roblox ambience
Fourth let us modify our original code
local cam = workspace.CurrentCamera -- Make a variable for camera
local vm = script.Ak47:Clone() -- Locate where the viewmodel is
local rs = game:GetService("RunService") -- get RunService
local viewport = script.Parent.Viewmodel.ViewportFrame -- Locate where the ViewportFrame is
viewport.CurrentCamera = cam -- sets the camera reference to the camera
rs.RenderStepped:Connect(function() -- We're using Render stepped so it runs every frame
vm.Parent = viewport -- parents the viewmodel to the viewport so the viewport can see it
vm:SetPrimaryPartCFrame(cam.CFrame) -- always set the precise CFrame of the viewmodel to the camera
end)

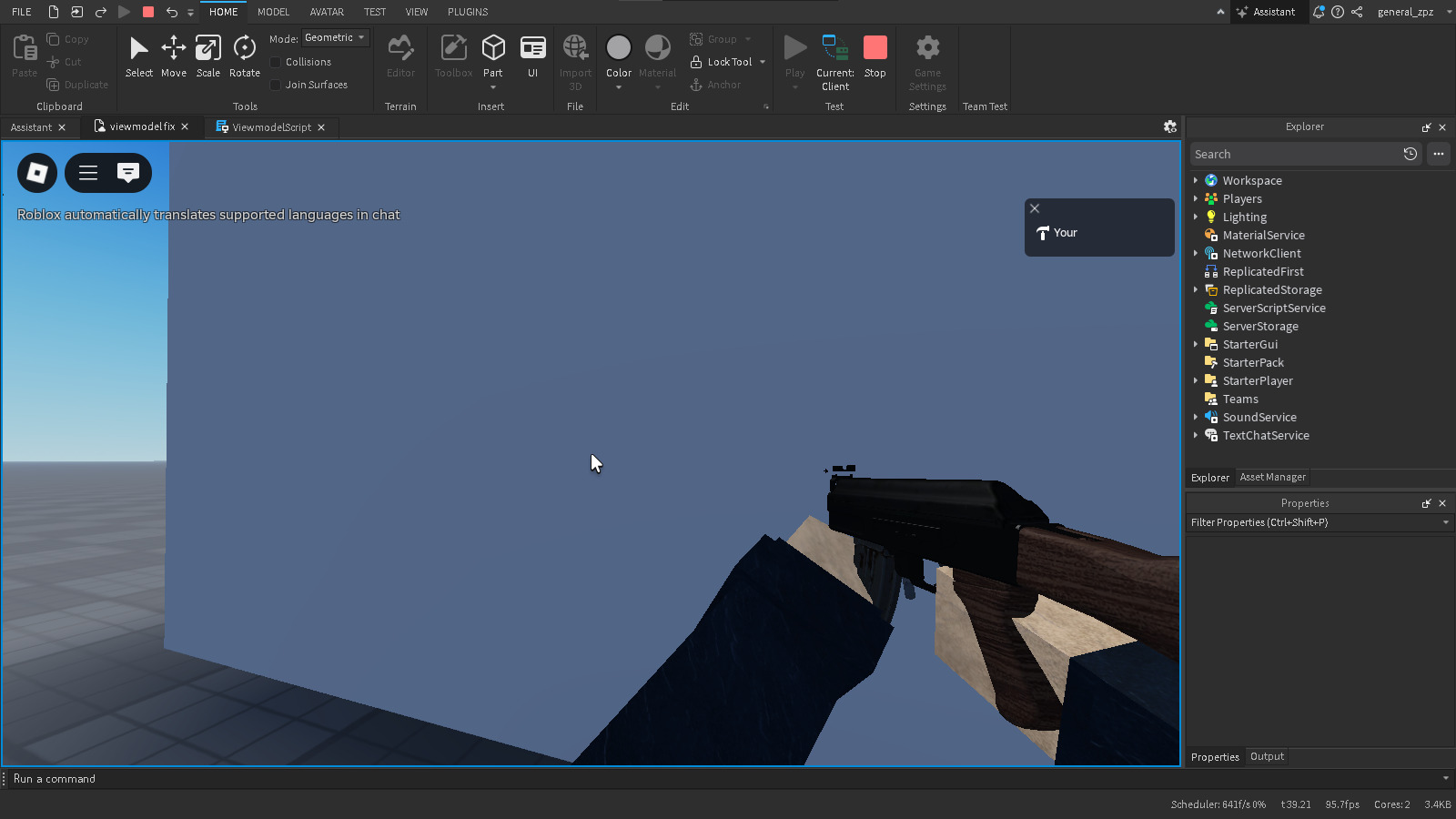

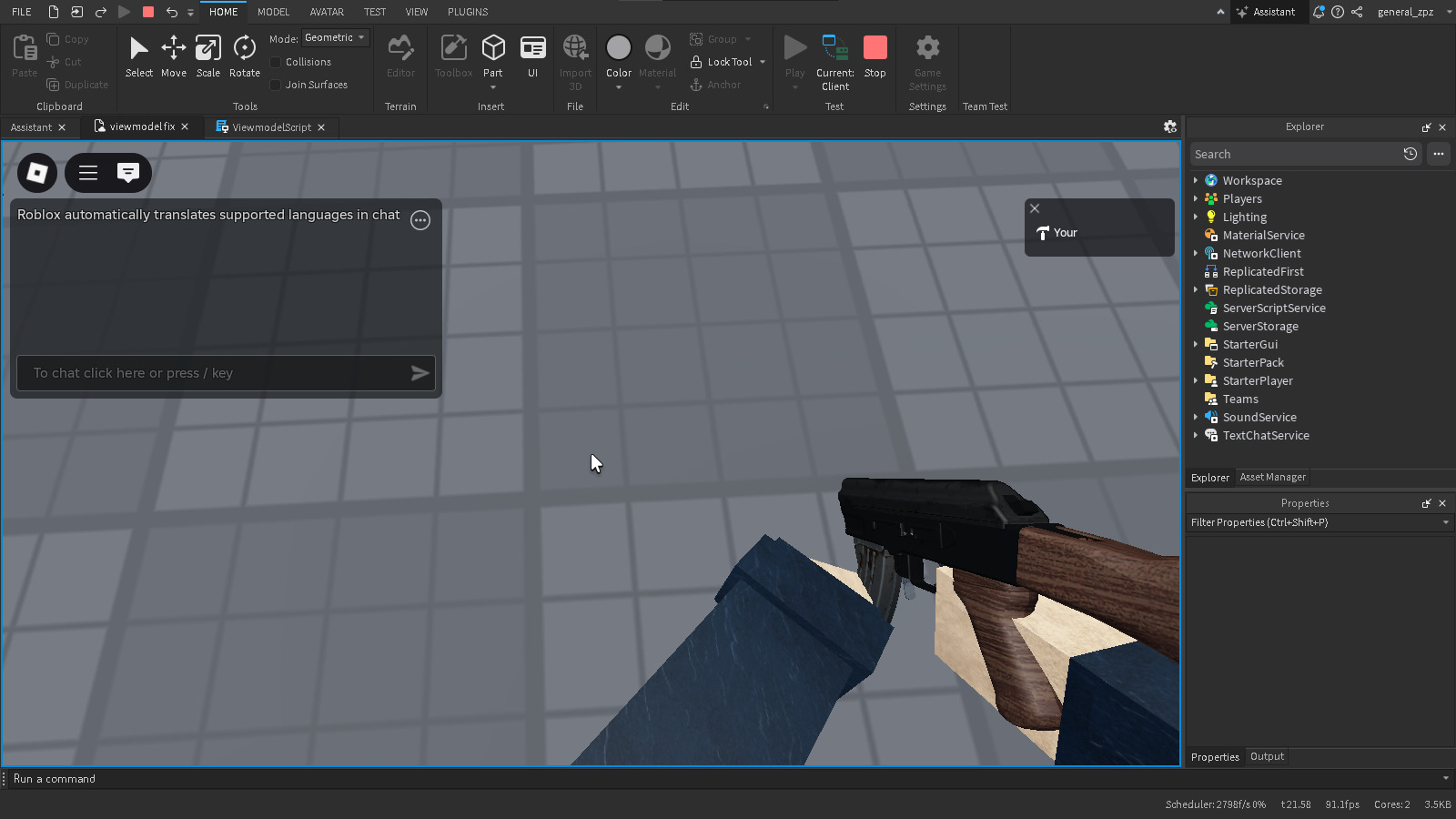

and just like that, we made our viewmodel always draw on top
Advantages and Disadvantages
Advantages
- gives realistic vibes
- optimize workspace render
- light precision and more standing out modifications are free to modify with some basic viewport/ui knowledge
- looks cool
- viewmodel transparency customization
Disadvantages
- looks cut out version if not modified consistently - but can be fixed with some creativity
- light precision because the viewmodel is lighter than the ambience - but can be fixed
Why is this a common Issue in video game developing and why does this work
Because the traditional way to do it is putting the whole Viewmodel object to the same environment as the main game itself therefore the game thinks its a physical objects and therefore will have a reason why it should clip through the wall
This was fixed through making the viewmodel exist outside the main game’s environment and drawing it to the screen instead.
