We need a completely reworked EnvMap system

[tabby0x (tabby)]

As a roblox developer it is currently impossible to use the EnvMap system correctly to create realistic worlds, it needs a massive rework and here is why.

I have been facing massive issues with EnvMaps in my game as of recently, they look quite literally terrible and cant be controlled. Which has led me to further dig into roblox by using a multitude of tools such as RenderDoc to figure out why the EnvMaps look and behave so poorly.

Currently from what RenderDoc has shown me, EnvMaps are “generated” with a resolution of 128x128 pixels. How do I know this? Using RenderDoc to dump the current rendered frame shows the EnvMap 2D Render Target texture. Which as shown below here.

Now, this is a masssive issue because of how terrible these EnvMaps look on objects that clearly show the reflection of these EnvMaps.

Here is a great example of my game as to why these look awful.

Which leads me to my 2nd point.

Please, for the love of god let us control the placement and resolution of these envmaps. Static Cubemaps that are pre-baked are not only more consistent, it can be even better as implementing parallax corrected cubemaps is a possibility here, essentially fixing one of the issues shown above in the video. I currently cannot express my absolute hate towards the “automatic” generation and placement of envmaps. Sometimes these end up generating near a neon surface and will make every single specular object look like it became the sun.

This is a great video that explains the usage of parallax corrected cubemaps.

Parallax Corrected Cubemaps | Operation Black Mesa / Guard Duty

So please, can we developers finally get a more functional implementation of this feature that isn’t MEANT for mobile for once? I know mobile devices aren’t the most capable devices ,but having pre baked cubemaps that are static are not impossible on mobile. Unity, Unreal and other engines ALL support them on mobile.

[TEARAPARTJAMES (FROGMIRE)]

I also support this!

I honestly hate the current state of EnvMaps as well. As you stated, there is no way to control the EnvMap at all! As a developer, you would actually want to have control when it comes to stuff like this, but Roblox pulls the funny and says this nonsense.

@ConvexRumbler

Why can’t devs place env maps?
Roblox highly believes that instances used in the engine should represent the real world. There is no such thing as a “lighting probe” in the physical world, so we cannot add such concepts.

I understand that this may sound highly inconvenient, but you can always just decide to not use the IBL system until we improve it to your liking.

(also it is forced now so you cannot just not use it)

Automating something that shouldn’t be automated is hilariously funny. The best part is that old engines like Source, which don’t use automated hacky solutions, look 100 times better than whatever Roblox cooked up for us.

[tabby0x (tabby)]

@TEARAPARTJAMES

Automating something that shouldn’t be automated is hilariously funny. The best part is that old engines like Source, which don’t use automated hacky solutions, look 100 times better than whatever Roblox cooked up for us.

Not to mention static baked cubemaps dont suffer from the limitations as runtime generated ones and also take less processing power as they are well STATIC

[Clojule (Jule)]

This is something that holds me back as a developer on the platform as well. The EnvMaps are limited and aren’t enough to create a realistic Roblox game. Currently, we have to rely on other methods that negatively impact performance, and the overall quality of EnvMaps is poor. This greatly affects the desired “photo-realistic environments” that Roblox aims for. Not having control over EnvMaps actually contradicts their intended goal. In general, the EnvMaps are in a terrible state, and I wish we could have the option to place them or use a custom cubemap system, or if not at least their quality increased.

[vvv331 (vvv)]

I personally never liked this current EnvMap system, especially the way its implemented
Personally this should be done manually instead of automatically as was mentioned, so i support this.

[tabby0x (tabby)]

I totally agree, how is the current system good at all?

Its terrible. You cannot control their generation at all nor disable it correctly. They look terrible as soon as a surface has clear specular reflections.

[MagmaBurnsV]

One problem with implementing static cubemaps would be when should the engine decide when to create one. With features like Streaming Enabled and live physics, a scene may be extremely dynamic, so having it just static may not be always acceptable.

---

I think it may be useful for engineers if they were given what we envision such a system to look like. This gives a better narrative of what we want to achieve, rather than just saying “the current implementation is bad, fix it.” For example, there could be a new instance that gives user facing controls to the EnvMap. Here’s an example:

EnvMap inherits PVInstance

Properties

• Enum RenderMode - How the map is generated
  • Automatic - Map is dynamically generated
  • Static - Map is generated once at load
  • Scripted - Map is only generated by scripts
  • Custom - User can enter a ContentId for the Map
• Enum WrapMode - How the map interacts
  • Parallax
  • ParallaxCorrected
• Enum EnvResolution - The resolution of the generated map
  • Level1 - 128 x 128
  • Level2 - 256 x 256
  • Level3 - 512 x 512
• ContentId Texture - What RenderMap.Custom will use

Methods

• ContentId Render - Forces map to be generated, and returns a rbxtemp assetid of the generated map
• ContentId GetCurrentMap - Returns a rbxtemp assetid of the generated map

[tabby0x (tabby)]

Static cubemaps are not generated during runtime. They are static because they are baked in studio before the game even runs. This reduces the overall performance impact of having to constantly bake new cube maps in runtime.

Which is basically the entire point of cube maps. You can’t make them efficiently during runtime without having massive quality loss.

Cube maps are meant to be baked before runtime. Not a singular engine I know of does them in runtime. If you would want runtime reflections you could as well just add SSR at this point. That fixes your issue with reflections not being represented for dynamic objects.

If you look at the video that demonstrates parallax corrected cube maps in the source engine. You can see you can define an area where said cube map is rendered as a box. Engines like unity and unreal do the exact same thing. This gives you great control over where cubemaps are rendered and from what origin they are captured.

A dynamic EnvMap implementation like currently is just unusable. Roblox can’t rely on runtime generation for them considering it is Raycast based. If they want realistic runtime reflections that consider changes from objects then we will need SSR or Planar Reflections.

[JoyfulFlowerMary (Mary)]

I also agree. Roblox’s cubemaps are so bad. They’re so low quality that I could probably count the pixels that make up the images, and due to their quality, they stand out when they’re used around well-designed environments.

If there’s one game that shows just how bad that these “environment maps” look, it’s Royale High. Go to Campus 2 or your apartment and the smooth plastic(?) floor/ceiling makes it so easy to see the pixels.

Also, yeah, I agree about being able to set cubemaps’ resolutions and positions. During the limited time when I was messing around with the Source Engine, I think I liked having control over exactly where it would take the six photos from, and even what surfaces that any given cubemap would affect.

@TEARAPARTJAMES

(also it is forced now so you cannot just not use it)

As far as I can tell, the only way to avoid using these bad cubemaps is to always set the “reflective” property on all parts to 0. That’s what I have to do in my experience just to make sure that these ugly cubemaps that I have no control over don’t show up and make it look worse.

(Also, Roblox, real life doesn’t have “light probes” but it also doesn’t have static reflections that look worse than the Source Engine’s, and it doesn’t have reflections that update at complete random. Roblox won’t try to get with the times and include somewhat “real time” reflections so they should just admit this engine is kind of outdated and just make the cubemaps work like Source.)

[MasterArchitech]

Mobile Devices can easily handle Parallax Corrected as extends to Planar Reflections and Screen Space Reflection, unless you’re still using Iphone4 which no longer supported by the OS.

Reviving this to be heard again, the current method Roblox Approaching is to dynamically create incorrected default cubemap (Not Parallax Corrected), by projecting raycasts from the cubemap to detects whenever the camera is indoor, yet they didn’t bother to use Parallax to get a better result as their main goal is just to make the PBR Textures metallics looks a bit better for small complex object.

I personally support the ideas of implementing Planar Reflections Probes property on BasePart to make a surface-optimized reflections based on the part’s size and position, as well as implement of Screen Space Reflection (SSR), as this give much better result and barely have zero impacts on the performance issue considering the OpenGL’s technology and majority of Hardware’s used nowadays on 2024, again these methods are easily archived back in early 2000s even before Ray Tracing has become a thing.

[shakegmaes (Serasaa)]

Reviving this topic again

Personally i think Roblox is just being another big company not listening to their customers that have incredibly good points, and by that i mean that people are complaining to Roblox because they insist in using a 14+ year old rendering system just because low end devices matter. My man, even the lowest end phone you can find out there doesn’t need OpenGLES anymore. Vulkan performs better, is more optimized, looks good and allows for more complex rendering. just take a look at Minecraft for a bit. Minecraft uses OpenGL for rendering, and that runs awfully bad for a blocky game that isn’t complex at all, there is a mod for Minecraft that changed the rendering system from OpenGL to Vulkan, and with Vulkan, Minecraft runs exceptionally better being a simple block game. so why don’t do this with Roblox too? There IS a reason why let’s say… Frontlines runs worse than Battlefield V, while looking worse than said game.

TL:DR I’m fed up with Roblox’s incompetence to just move on and use modern systems instead of decade old OpenGLES and OpenGL

[shakegmaes (Serasaa)]

@Judgy_Oreo

OpenCL is unrelated to anything discussed

Yeah thanks for saying that. I actually meant OpenGLES and I’ll edit it

[supercar17 (twistyyy)]

Honestly I feel like reviving the topic is necessary.

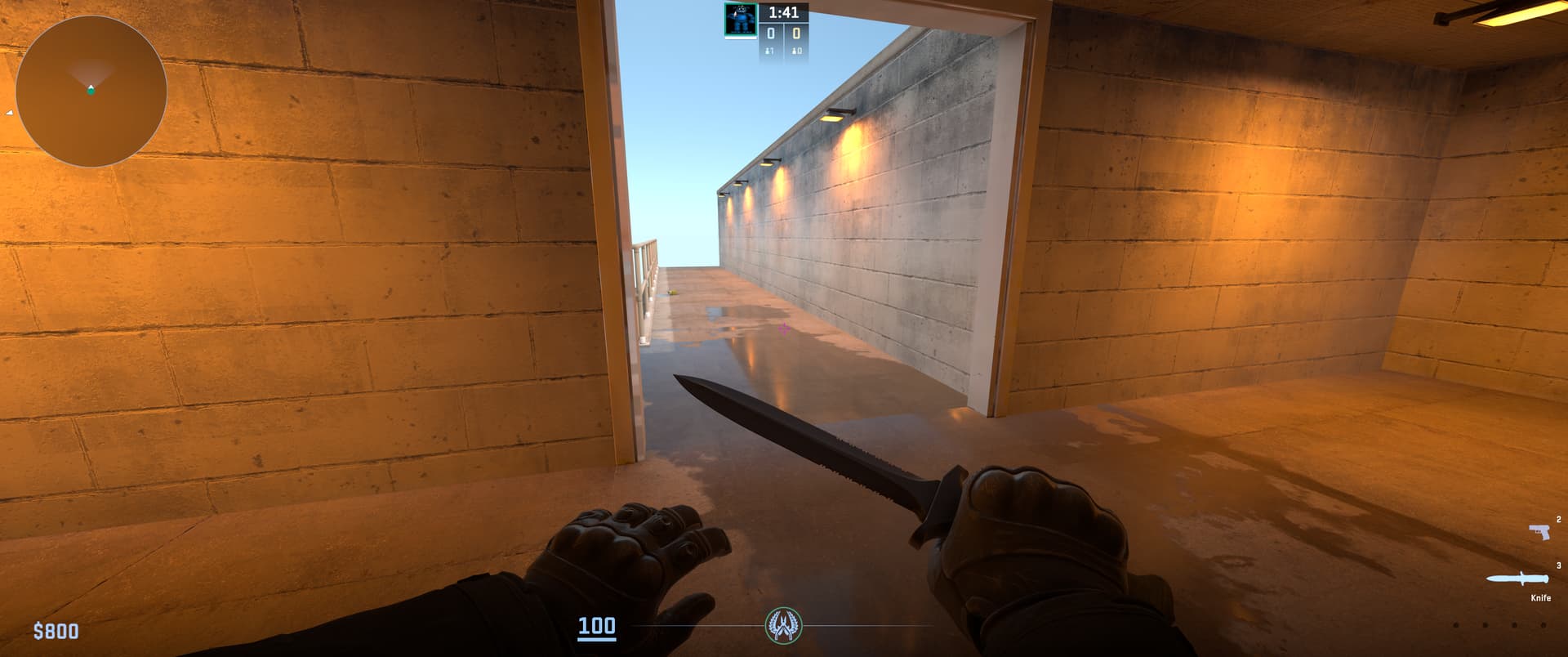

Look at how close to ray tracing you can achieve in Source 2 with just parallax corrected cubemaps:

And if it was to be mixed with SSR, it would be even better.

[tabby0x (tabby)]

Parallax is for sure important, I think they also need to REALLY raise the resolution of these envmaps. I did this before by modifying the binary of Roblox Studio with a disassembler, found the parts where in C++ they create the cubemaps and made the engine use a different size for them, the result was really incredible. What I also noticed was that in the reflections, all meshes had a REALLY high LOD, so they sometimes looked “corrupted” almost, that I also changed and made it render at LOD0.

However, the envmaps still sadly use voxel lighting in their reflections.

[supercar17 (twistyyy)]

oh damn! they look great, just now we need baked ones with variable resolutions which can be changed at runtime

[supercar17 (twistyyy)]

Looking at this, I believe by just decompiling this, we can force the cubemaps to render at 60fps or higher from the cameras position

that would be sick, but i dont actually know how to do that

[Kollasi9]

We also need reflections for the exterior. Why in hell it only works indoors?

[supercar17 (twistyyy)]

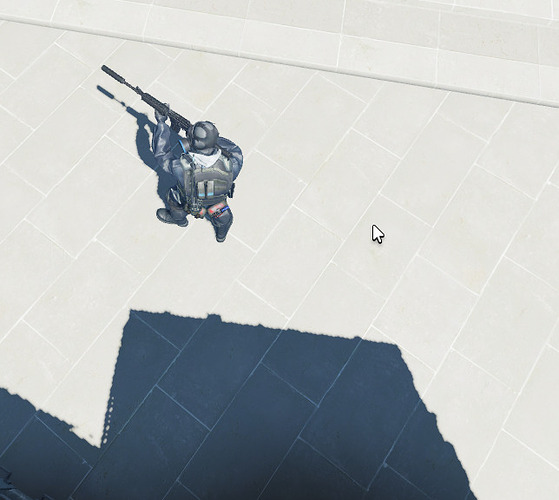

Thats what really bugs me too. I’m working on a direct carbon copy of CS2 and right now my main limitations are the shadows, reflections and the fact that light probes just don’t exist, alongside really old and awful SSAO. The only way to improve the shadows is to just scale everything up

[WishfulElena (Elena)]

Yes. OMG. Yes. The fixed-function graphics pipelines of old heavily used environment maps to achieve reflective effects on what was otherwise weak hardware for the time. Seeing a better EnvMap system implemented in Roblox would not only let us use those same techniques to squeeze good visuals out of low-spec hardware, but also provide further control over more realistic reflections.

[enzogamer123vv (8800GTX)]

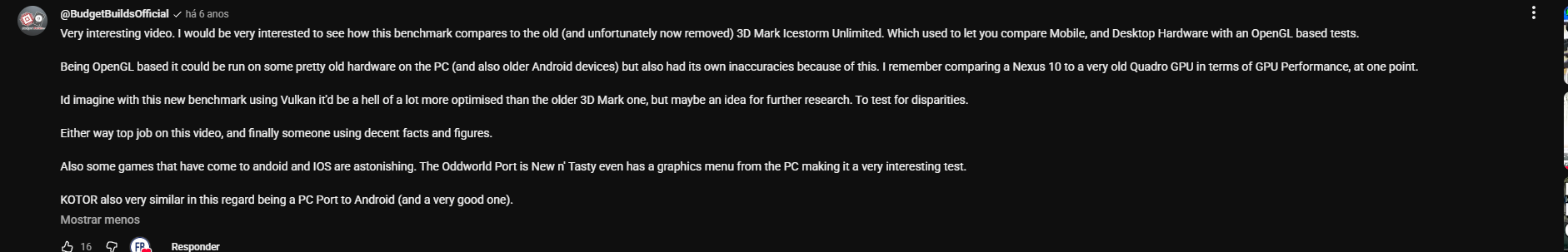

Based from this Youtube comment, a 2012 high end tablet is better than, for example, a NVIDIA Quadro FX 5500, i’d imagine even a mid range phone from 2024, beats a ATI Radeon HD 5770, which was a excellent mid-range card in 2009. So the argument from ROBLOX Employees that mobile phones cant handle these decade-old features are a lie
