Based on my previous question, I got the solution to prevent the camera from approaching the character when there is an obstacle.
However, the default transparency imposed by this method is too high:
How to reduce the transparency of the target object when the character passes through this object, when DevCameraOcclusionMode = Invisicam?
You should take a look at this:
https://developer.roblox.com/en-us/api-reference/function/Camera/GetPartsObscuringTarget
It might help you.
GetPartsObscuringTarget will return an array of BaseParts which had become semi-transparent.
But, looking at the Transparency property of the object in question, it doesn’t change when Invisicam is activated (it keeps always as 0).
And even though I change manually the object’s Transparency, it doesn’t affect the semi-transparency applied by Invisicam.
So what to do?
So, in this case, how do I detect that Invisicam has been triggered for an object?
Do I have to track all existing in-game objects inside a RenderStep?
Or is there any specific signal I can use for an object when it’s modified by Invisicam?
No you should use GetPartsObscuringTarget to check what parts are affected and set their BasePart | Roblox Creator Documentation every RenderStepped.
Understand. However, this will have a high CPU cost when there are thousands of parts inside the game…
Instead you can connect a :GetPropertyChangedSignal to the LocalTransparencyModifier property on every part.
Hey. Good news: I found the solution. So Invisicam (just like all the other player control related stuffs) is being controlled by Roblox’s PlayerModule. That module gets loaded into every player’s PlayerScripts when the game starts. However, if there is already one there, it wont get loaded. So what you do is:
0. Set camera occlusion mode to “Invisicam” (you have already done this);

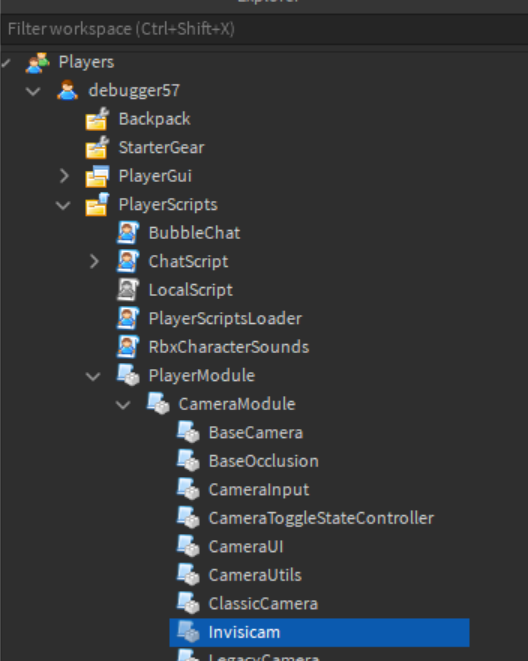

game.Players and find an object named PlayerScripts, then expand it and you are gonna see a whole bunch of stuff. Find a module named “PlayerModule”:@debugger57 That’s great idea! Thank you for all your effort.
However, @Abcreator gave the simpler solution:
Now it’s very easy to detect any property change, like LocalTransparencyModifier.
Here’s my final solution, which will reduce the default (0.75) transparency to 0.5:
part:GetPropertyChangedSignal("LocalTransparencyModifier"):Connect(function()
if part.LocalTransparencyModifier == 0.75 then
part.LocalTransparencyModifier = 0.5
end
end)
@Abcreator although it’s your idea, I’ll set this post as solution, since it has a code snippet to facilitate the consultation of future similar questions.
Thank you for the tip!
Hmm, there is a glitch in my previous solution:
If I change the LocalTransparencyModifier inside its own GetPropertyChangedSignal("LocalTransparencyModifier"), it will create an infinite recursive loop…
Check the value of it before changing it.
I ran several tests and reached some important conclusions:
LocalTransparencyModifier value inside GetPropertyChangedSignal("LocalTransparencyModifier"). Roblox will not accept this change and will re-force the value 0.75 every time.LocalTransparencyModifier will fluctuate between 0.75 and 0.5 (as reported here):DevCameraOcclusionMode = Invisicam property acts for ALL objects, so I can’t specify a blacklist or whitelist for which objects I want to be affected by this property.Taking all these restrictions into consideration, I conclude that it is easier and more flexible to create a Raycast script between the camera and the character, leaving only the parts that interest me semi-transparent.
I suggest using @debugger57 ‘s solution. You only need to change one variable, and if you are scared that you’ll miss an update, change the PlayerModule every once in a while. To me it seems like the easier solution.
Or, if you want to get really technical, you can copy the code inside the Invisicam module and make the appropriate edits (which could take a bit).
If you need any help or suggestions let us know.
You’re right. It really was the simplest solution. I only realized this after getting hit a lot with all the bugs I reported above. I was already developing a whole ray method as I mentioned before, but your answer came just in time.
I was not aware that it was possible to hack this script.
Thank you for your insistence and your patience.
@debugger57 Thank you for your effort and your solution. There was only one problem when duplicating the original Invisicam script, showing the warning about Humanoid.Torso deprecated:
Changing by Torso by RootPart solved the problem:
Well, there is only one remaining limitation, which I commented on before: Invisicam acts on ALL objects. How to create a whitelist or blacklist to choose only some objects to be affected by transparency?
Yeah, I also see that in the original InvisiCam script there are mentions of GetPartsObscuringTarget.
I just don’t know how to add items to the ignore list of this script.
In the second argument of the function add a table of all the parts you wish to ignore.
Adding onto this, you should make a variable at the beginning of the Invisicam script, that looks like this
local IGNORE_PARTS = {}
Then, like @Abcreator said, add the IGNORE_PARTS variable to the second argument of the function.
