New Audio API [Beta]: Elevate Sound and Voice in Your Experiences

[Update] February 28, 2024



Hello Creators!

We’re excited to unveil the beta release of our new Audio API, which includes highly anticipated controls over sound and voice that @Doctor_Sonar previewed at RDC!

Have you ever wanted to emit a single sound from various 3D locations simultaneously? What about altering players’ voices? How about implementing team chat or creating a functional walkie-talkie? Our new API finally empowers you with the control over sound and voice chat that you’ve been asking for — and much more!

To make this level of control possible, we’re introducing many new instances. But conceptually, these instances fall into three categories: some that produce audio streams, some that consume audio streams, and some — such as effects — that do both. Wires connect these up to form a processing graph.

The new API’s modular design marks a departure from existing Sound, SoundGroup, and SoundEffect instances. While the older APIs will remain active, the new API enables a suite of features that were previously impossible, like treating voice the same as any other audio source. This beta introduces new ways of thinking about sound design in Roblox. Some features may be familiar, but others — like the spatial simulation of voice audio and how it’s wired– may require some experimentation and getting used to.

Please read this post thoroughly before making changes to your existing experiences. Your feedback during this beta phase is critical as we continue to improve the API and make sound design even more powerful for developers.

To get started, follow the instructions below to learn how this API works and what has changed, then download this Audio API tutorial placefile to experiment with how your ideas may sound in practice. We are eager to see what you’ll build and are certain your work will be much cooler than any of the examples we’ve put together!

How to Use the Audio API

Getting Started

Before we begin, you must enable the “New Audio API” Beta Feature in Studio; this makes the new instances browsable and insertable.

The existing Sound instance functions as a file-player; however, if parented to a Part or Attachment, it will also behave as a 3D audio emitter that can be heard by your listener. Previously, to play the same sound from multiple 3D locations simultaneously, your only option was to duplicate the playback. Today, Wires make it possible to work with these three logically distinct components separately.

Let’s walk through an example of setting up a Public Address system.

Step 1: Create Some Emitters

Create some Parts or Models to act as speakers. Under each one, create an AudioEmitter instance. For organization, we’ve opted to put all of these in a folder.


AudioEmitters are points in 3D space that broadcast sound into the world.

Step 2: Create Some Wires

Create one Wire per speaker, and set their TargetInstance property to the corresponding AudioEmitter. Wires can be anywhere in the DataModel, but we’ll add them as children of the AudioEmitters for organization.


Step 3: Create an AudioPlayer

Create an AudioPlayer instance, and set the SourceInstance property of each Wire to it.

AudioPlayers can be anywhere in the DataModel, but for organization, we’ll add it to the same folder as our Speakers.


AudioPlayers can load and play audio assets. Assign the AssetId property of the AudioPlayer to a suitable audio asset, and notice that its TimeLength and IsReady properties get filled in.

Step 4: Create a Listener

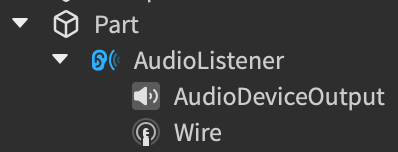

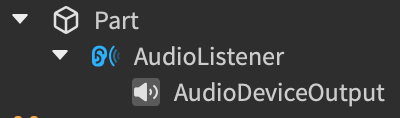

Create an AudioListener; we’ll parent it to another part. Then create an AudioDeviceOutput – this can live anywhere, but we’ll parent it to the AudioListener.


Finally, create a Wire that connects the AudioListener to the AudioDeviceOutput, by setting its SourceInstance property to the listener, and TargetInstance to the device-output. AudioListeners pick up their surroundings and record a signal that can be wired to other nodes. To render what the listener heard, we wired it directly to an AudioDeviceOutput.


Step 5: Try it out!

Add a script along the lines of:

local audioPlayer = script.Parent
audioPlayer.Looping = true
audioPlayer:Play()

As a child under the AudioPlayer – then press Play.

You should hear the same asset played from each speaker in sync – if you move the part hosting the AudioListener, it will be spatialized differently according to the part’s CFrame.

New Instances

In the walkthrough above, we demonstrated using AudioPlayer, AudioEmitter, AudioListener, and AudioDeviceOutput. These are just four of the instances that can be connected with Wires. The full list includes 15 instances:

image7 image1 image9

Example Use Cases

Working with Voice Input

To control voice with the beta Audio API, you’ll need to specifically enable it by navigating to Model > Advanced > Service, and inserting the VoiceChatService.

Doing so, you’ll notice two properties under VoiceChatService: UseAudioApi, and EnableDefaultVoice. UseAudioApi has three possible values: Automatic, Disabled, and Enabled. In this phase of the beta API, Automatic equals Disabled; we do this to prevent unintentional changes to your existing experiences.

Setting UseAudioApi to Enabled creates new opportunities for routing voices by allowing the use of AudioDeviceInputs. If EnableDefaultVoice is enabled, VoiceChatServices creates an AudioDeviceInput parented to each player, an AudioEmitter parented to each character model, and wires them together. Additionally, an AudioListener is parented to Workspace.CurrentCamera.

AudioDeviceInputs have a Player property, and can be scripted to determine whether they are Muted. See this example below:

Sample code for Muting a Player
local function setMuted(player: Player, shouldBeMuted: boolean) : nil
    local input: AudioDeviceInput? = player:FindFirstChild(“AudioDeviceInput”)
    if input then
        input.Muted = shouldBeMuted
    end
end

You can rewire them, adjust their properties, add effects, and more! If you don’t want any default voice behavior to be provided for you, the VoiceChatService.EnableDefaultVoice property can be turned off. As long as UseAudioApi is still set to Enabled, the behavior is entirely up to you.

In the fourth example in our Audio API tutorial, we used AudioDeviceInputs to implement chat via handheld radios:

Please note: In the new Audio API, AudioEmitters mimic real-world distance attenuation, meaning the volume fades as an AudioListener moves away from each emitter but doesn’t completely decay to zero. Previously, player voices were completely inaudible from more than 80 studs away. This means that if you opt-in to the new APIs and make no other changes, your experience will sound different: voices will be audible from further away. We strongly suggest experimenting and testing with multiple voice users at different distances to achieve your desired results. For greater control over audio rolloff we recommend using AudioEqualizers; you can find sample code in our API doc to get you started.

If you are interested in recapturing exactly the same behavior as before, you can use the sample code below:

Sample code for Recreating Older voice rolloff
​​local function wireUp(source: Instance, target: Instance) : Wire
	local wire = Instance.new("Wire")
	wire.SourceInstance = source
	wire.TargetInstance = target
	wire.Parent = target
	return wire
end

local function split(wire: Wire, effect: Instance)
	local source = wire.SourceInstance
	local target = wire.TargetInstance
	wire.TargetInstance = effect
	wireUp(effect, target)
end

local function onWireConnected(wire: Wire)
	local fader = Instance.new("AudioFader")
	fader.Parent = wire
	split(wire, fader)
end

local function onWireAdded(wire: Wire)
	if wire.Connected then
		onWireConnected(wire)
	end
	local connection: RBXScriptConnection = nil
	connection = wire:GetPropertyChangedSignal("Connected"):Connect(function()
		onWireConnected(wire)
		connection:Disconnect()
	end)
end

local function onEmitterAdded(emitter: AudioEmitter)
	local wire = emitter:FindFirstChild("Wire")
	if wire then
		onWireAdded(wire)
	end
	emitter.ChildAdded:Connect(function(child)
		if child:IsA("Wire") then
			onWireAdded(child)
		end
	end)
end

local function onCharacterAdded(character: Model)
	local emitter = character:FindFirstChild("AudioEmitter")
	if emitter then
		onEmitterAdded(emitter)
	end
	character.ChildAdded:Connect(function(child: Instance)
		if child:IsA("AudioEmitter") then
			onEmitterAdded(child)
		end
	end)
end

local function onPlayerAdded(player: Player)
	local character = player.Character
	if character then
		onCharacterAdded(character)
	end
	player.CharacterAdded:Connect(onCharacterAdded)
end

local players = game:GetService("Players")
for _, player in players:GetPlayers() do
	onPlayerAdded(player)
end
players.PlayerAdded:Connect(onPlayerAdded)

local function oldRollOff(from: Vector3, to: Vector3) : number
	local distance = (to - from).Magnitude

	local minDistance = script:GetAttribute("RollOffMinDistance") or 7
	local maxDistance = script:GetAttribute("RollOffMaxDistance") or 80

	if maxDistance <= minDistance or distance < minDistance then
		return 1
	elseif distance > maxDistance then
		return 0
	end
	local linearGain = 1 - (distance - minDistance) / (maxDistance - minDistance)
	return linearGain * linearGain
end

local function newRollOff(from: Vector3, to: Vector3) : number
	local distance = (to - from).Magnitude
	local gain = 4 / math.min(1, distance)
	return math.clamp(gain, 0, 1)
end

local function updateCharacter(character: Model)
	local primaryPart = character.PrimaryPart
	if not primaryPart then
		return
	end

	local emitter = character:FindFirstChild("AudioEmitter")
	if not emitter then
		return
	end

	local wire = emitter:FindFirstChild("Wire")
	if not wire then
		return
	end

	local fader = wire:FindFirstChild("AudioFader")
	if not fader then
		return
	end

	local emitterPosition = primaryPart.Position
	local listenerPosition = workspace.CurrentCamera.CFrame.Position

	local newAttenuation = newRollOff(emitterPosition, listenerPosition)
	local oldAttenuation = oldRollOff(emitterPosition, listenerPosition)
	fader.Volume = oldAttenuation / newAttenuation
end

local function updatePlayer(player: Player)
	local character = player.Character
	if character then
		updateCharacter(character)
	end
end

local function update()
	for _, player in players:GetPlayers() do
		updatePlayer(player)
	end
end

while true do
	update()
	task.wait()
end

UseAudioApi is currently opt-in, allowing time for you to try the changes out. We will strive to make it enabled by default in the near future, but your feedback and adoption are critical to making those changes. Today, if you do not enable VoiceChatService.UseAudioApi, Voice Chat will retain the older implementation, and any AudioDeviceInput created will not produce any sound.

Multiple Listeners

In the past, our system was designed with the assumption that SoundService:SetListener would be the only audio listener in the world. However, with the introduction of AudioListeners in the new API, you can now spawn multiple listeners. Each of these listeners perceives the world from a unique CFrame, unlocking features like split-screen, portals, and more!

Post-Listener Effects

You can add effects after an AudioListener hears things! Wiring such as AudioListener > Effects > AudioDeviceOutput can be used to implement underwater filtering, or room-reverb on all 3D audio at once. Previously, this was only possible by carefully categorizing Sounds into SoundGroups, and it was difficult to make a catch-all solution.

In-World Microphones

In the walkthrough, we used a single AudioListener attached to a part – but you can create more AudioListeners attached to Parts, Models, Attachments, or Cameras. In fact, you can take the signal heard by one AudioListener, and rewire it to an AudioEmitter to re-broadcast it, acting as a virtual microphone.

Beware, however, that feedback cycles can occur, and – just like in real life – it may not sound pleasant! To manage this, each AudioEmitter and AudioListener have an AudioInteractionGroup. AudioListeners will only hear AudioEmitters that are in the same interaction group.

Effects and Analysis

This API includes Wirable versions of the existing SoundEffects:

  • ReverbSoundEffectAudioReverb

  • CompressorSoundEffectAudioCompressor

  • EqualizerSoundEffectAudioEqualizer

  • ChorusSoundEffectAudioChorus

  • PitchShiftSoundEffectAudioPitchShifter

The existing SoundEffects get parented to Sounds & SoundGroups, which only allows them to be applied in sequence. Wires offer more flexibility here, permitting effects to be chained sequentially, or applied in parallel.

A few of these instances also have considerable upgrades: AudioEqualizer has movable crossover frequencies, and AudioReverb has significantly more properties to tune. And, we’ve added new ones:

  • AudioFader: a simple volume fader
  • AudioAnalyzer: can be used for analyzing volume and frequency contents

Known Issue

We are aware of an issue where AudioDeviceInput.AccessType does not replicate correctly. This will be fixed within the next couple of weeks, but for the time being we recommend implementing team-chat permissions through connecting & disconnecting Wires

Please let us know if you encounter any additional issues in the comments, so we can address them!

What’s Next

While the Audio API and voice support are fully live and work in published experiences, this API is still in beta. We plan to extend it, and your input is crucial. If there are necessary functionalities, or other producer and consumer nodes you feel are missing — we’re all ears. We value your feedback as we progress out of beta.

I want to extend a big thanks to @Doctor_Sonar, @therealmotorbikematt, @GTypeStar, @wellreadundead, and countless others who helped design, drive, and implement this system. Our team is very excited to see this roadmap item start to come to life! Check out what else we have planned for the year on our Creator Roadmap.
